Description

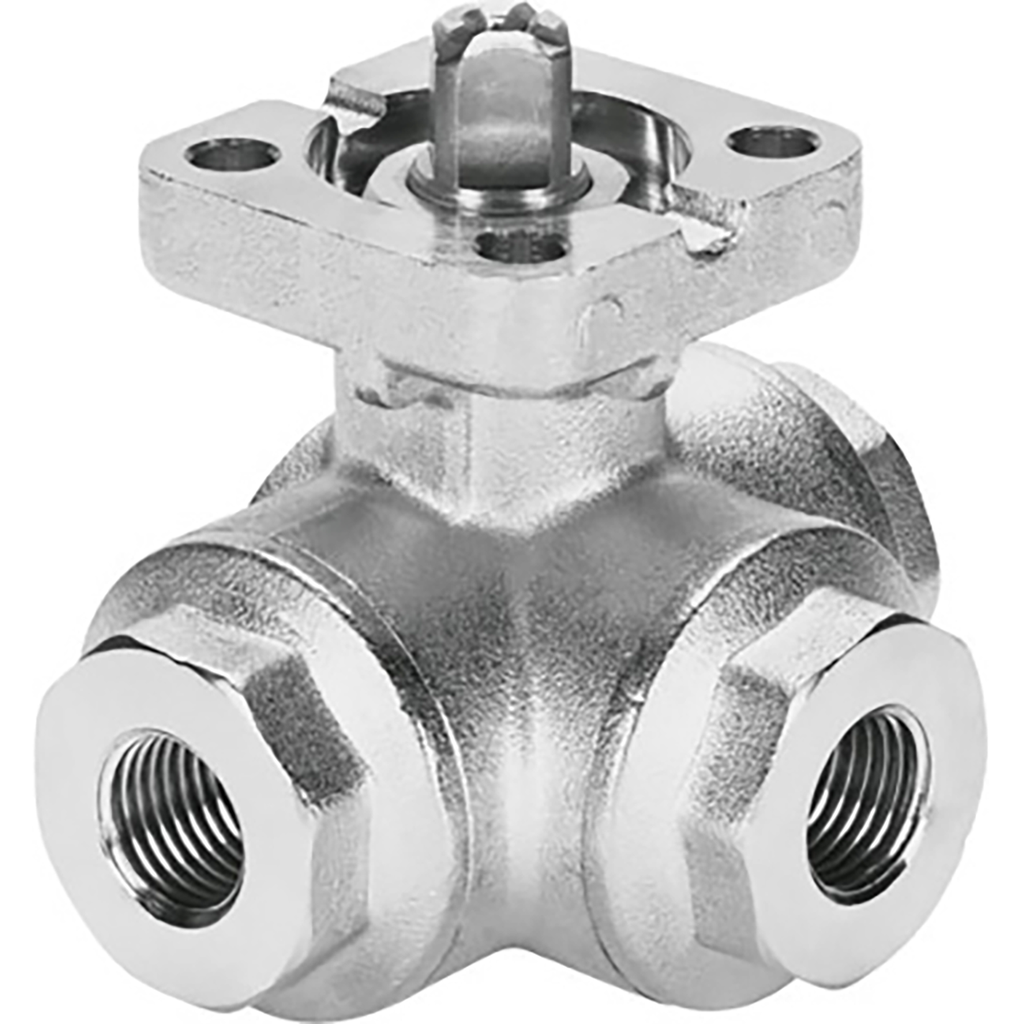

Ball Valve Vzba-11/4"-Ggg-63-32L-F0405-V4V4T Stainless Steel, 3/2-Way, Nominal Width 11/4", Top Flange F0405, Pn63, Thread En 10226-1. Design Structure=(* 3-Way Ball Valve, * L Hole), Type of Actuation=Mechanical, Sealing Principle=Soft, Assembly Position=Any, Mounting Type=Line Installation, Festo
Specifications:
| Brand | Festo |
| Flow LPM | 21560 |
| Function | 3/2 Way |
| Inside Diameter mm | 25.4 |
| Material | Stainless Steel |
| Nominal Bore mm | 32 |
| Seal Material | PTFE |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Temperature | -10°C to +200°C |
