Description

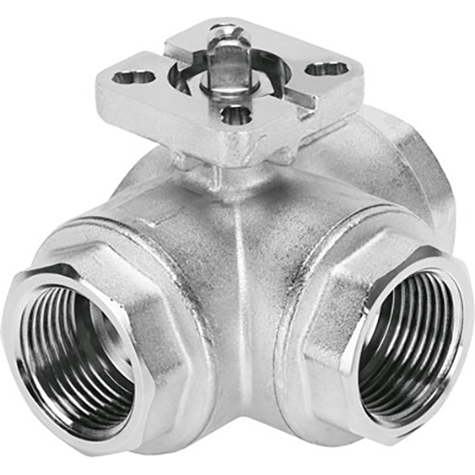

Ball Valve Vzbm-11/4-Rp-40-F-3T-F0405-B2B3 Brass, 3/2-Way, Nominal Width 11/2", Top Flange F0405, Pn40, Thread En 10226-1. Design Structure=(* 3-Way Ball Valve, * T Hole), Type of Actuation=Mechanical, Sealing Principle=Soft, Assembly Position=Any, Mounting Type=Line Installation, Festo
Specifications:
| Brand | Festo |
| Flow LPM | 220000 |
| Function | 3/2 Way |
| Inside Diameter mm | 38 |
| Material | Brass Nickel Plated |
| Nominal Bore mm | 32 |
| Seal Material | HNitrile/PTFE |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Temperature | -20°C to +130°C |
