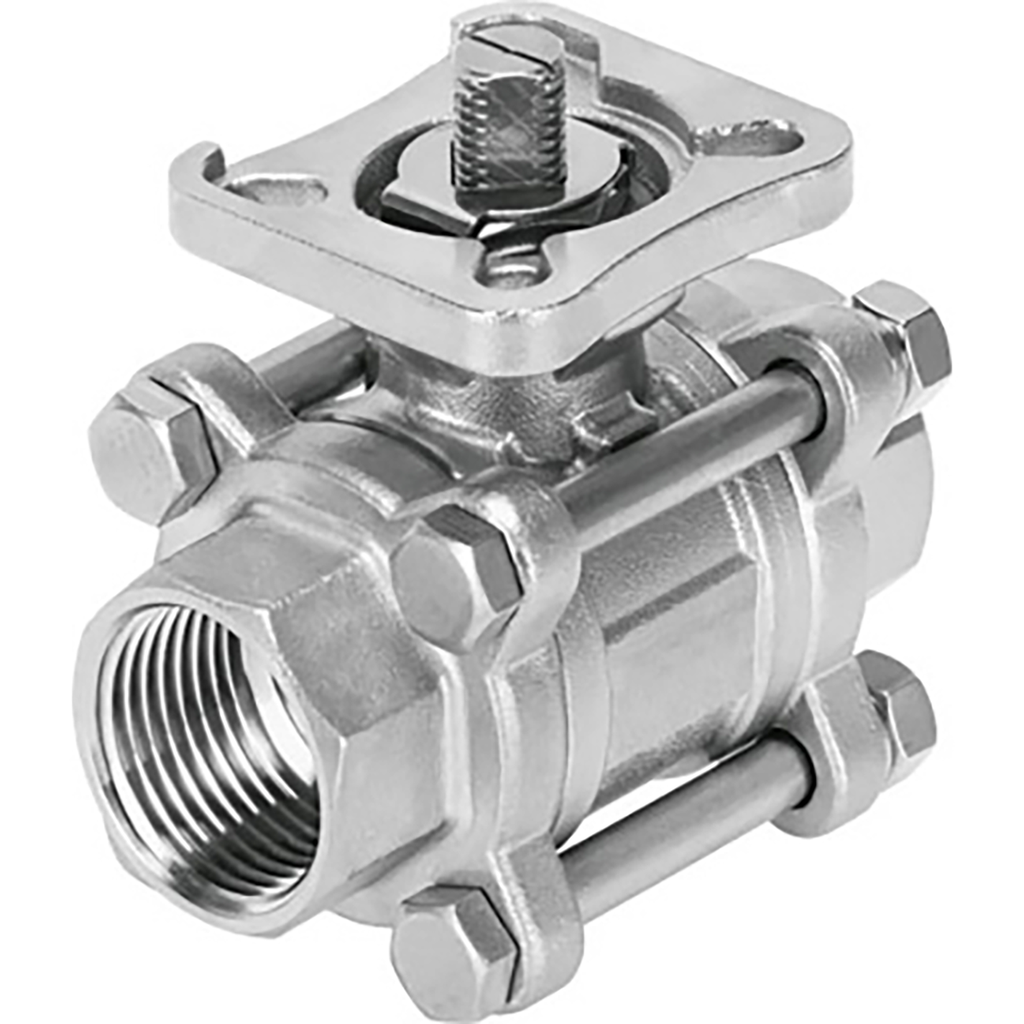

Ball Valve Vzbe-11/4-T-63-T-2-F0405-V15V15 Stainless Steel, 2/2-Way, Nominal Width 11/4", Top Flange F0405, Pn63, Asme B1.20.1 - Npt. Design Structure=2-Way Ball Valve, Type of Actuation=Mechanical, Sealing Principle=Soft, Assembly Position=Any, Mounting Type=Line Installation, Festo
Specifications:
| Brand | Festo |
| Flow LPM | 46860 |
| Function | 2 Way |
| Inside Diameter mm | 32 |
| Material | Stainless Steel |
| Nominal Bore mm | 32 |
| Seal Material | PTFE/FPM |
| Thread Type | NPT |
| Working Temperature | -20°C to +200°C |
