Description

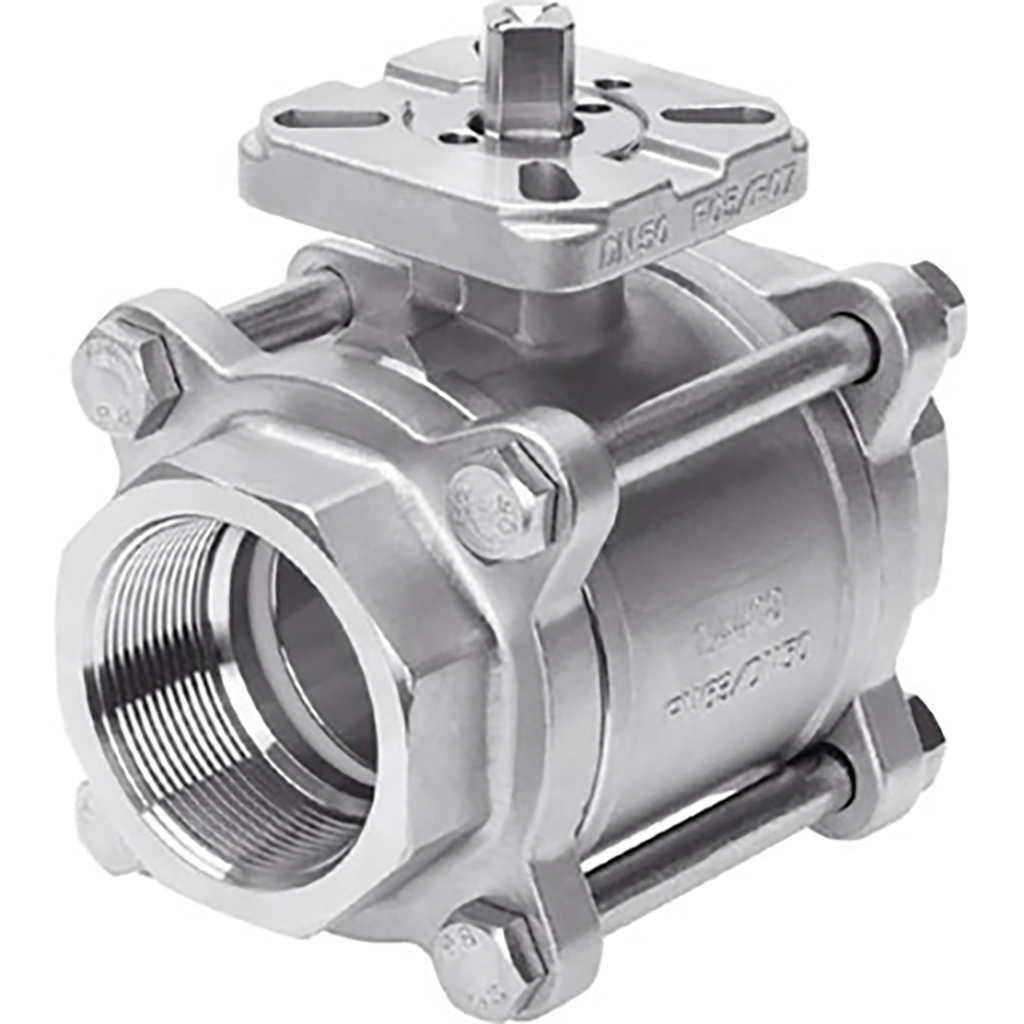

Ball Valve Vzba-1/2"-Gg-63-T-22-F0304-V4V4T Stainless Steel, 2/2-Way, Nominal Width 1/2", Top Flange F0304, Pn63, Welded End. Design Structure=2-Way Ball Valve, Type of Actuation=Mechanical, Sealing Principle=Soft, Assembly Position=Any, Mounting Type=Line Installation, Festo
Specifications:
| Brand | Festo |
| Flow LPM | 21340 |
| Function | 2 Way |
| Inside Diameter mm | 16 |
| Material | Stainless Steel |
| Nominal Bore mm | 15 |
| Seal Material | PTFE |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Temperature | -10°C to +200°C |
