Description

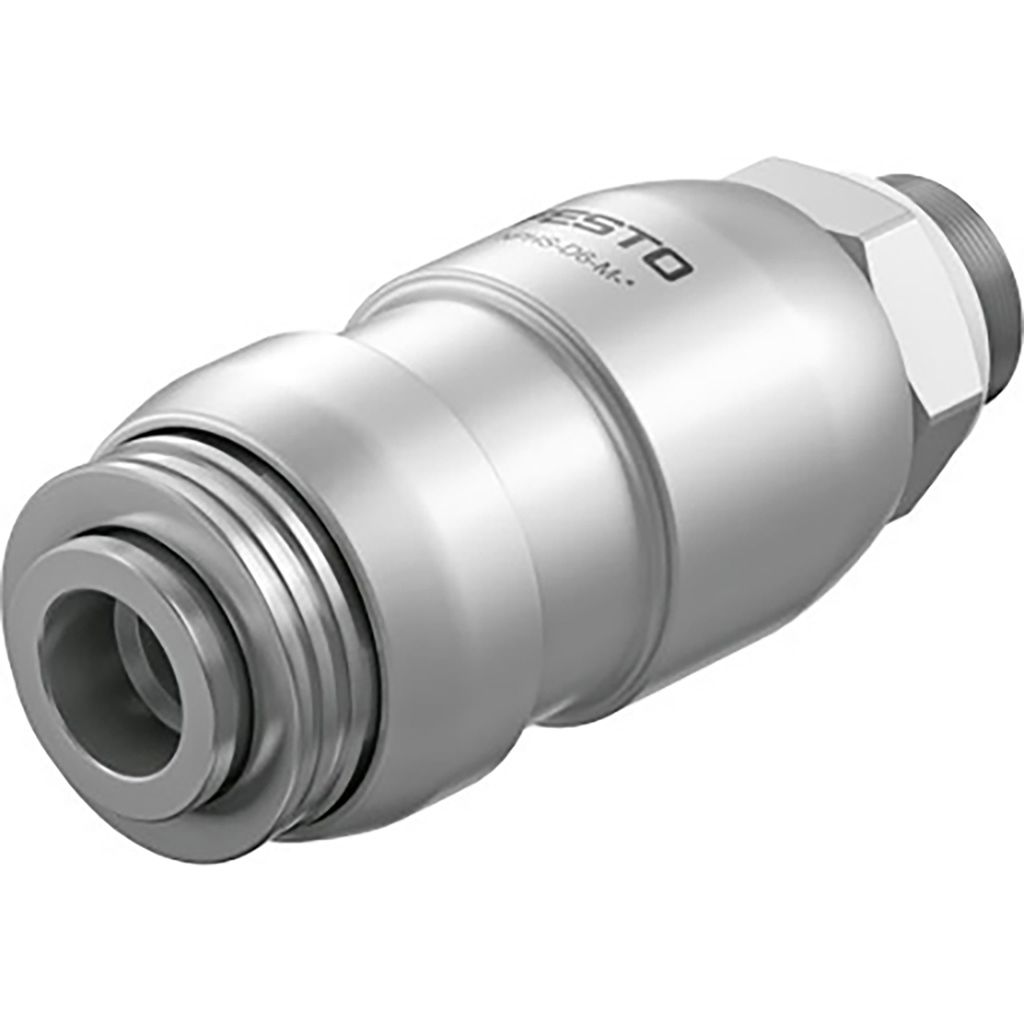

Coupling Socket Nphs-D6-M-G12 Nominal Size=10 Mm, Operating Pressure Complete Temperature Range=-0,95 - 20 bar, Standard Nominal Flow Rate=2000 L/Min, Operating Medium=Compressed Air In Accordance with Iso8573-1:2010 [7:-:-], Note On Operating and Pilot Medium=Lubricated Operation Possible
Specifications:
| Brand | Festo |
| Flow LPM | 2000 |
| Material | Brass Nickel Plated |
| Operation | Valved |
| Thread Gender | Male |
| Thread Type | BSPP |
| Working Pressure bar | -0.95 to 20 |
| Working Temperature | -20°C to +80°C |
