Description

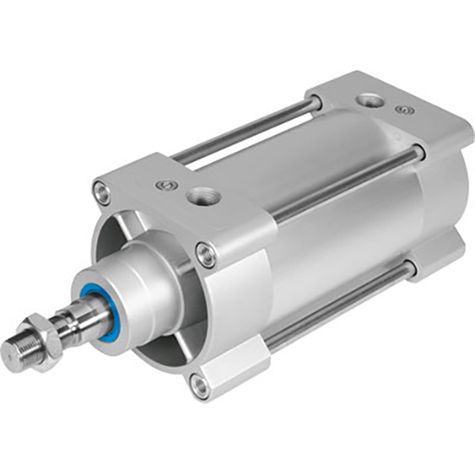

Standards-Based Cylinder Dsbg-100-125-Ppva-N3 Stroke=125 Mm, Piston Diameter=100 Mm, Piston Rod Thread=M20X1,5, Cushioning=Ppv: Pneumatic Cushioning Adjustable at Both Ends, Assembly Position=Any, Festo
Specifications:
| Brand | Festo |
| Barrel Material | Wrought Aluminium Alloy |
| Bore Size mm | 100 |
| Cushioning | Adjustable |
| Magnetic | Y |
| Piston Rod Material | High Alloy Steel |
| Piston Rod Thread | M20 x 1.5 |
| Piston Rod Thread Gender | Male |
| Stroke Length mm | 125 |
| Thread Type | BSPP |
| Working Pressure bar | 0.4 to 12 |
| Working Temperature | -20°C to +80°C |
