Description

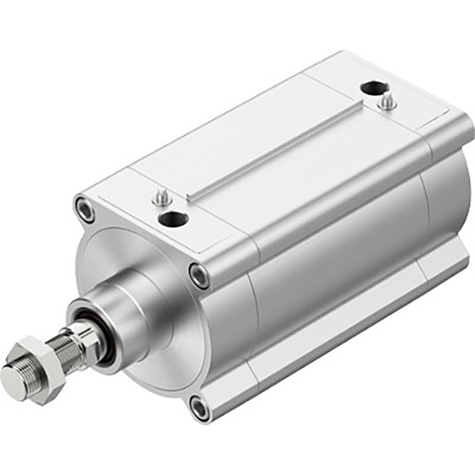

Standards-Based Cylinder Dsbf-C-125-500-Ppva-N3-R Stroke=500 Mm, Piston Diameter=125 Mm, Cushioning=Ppv: Pneumatic Cushioning Adjustable at Both Ends, Assembly Position=Any, Conforms to Standard=Iso 15552, Festo
Specifications:
| Brand | Festo |
| Barrel Material | Wrought Aluminium Alloy |
| Bore Size mm | 125 |
| Cushioning | Adjustable |
| Magnetic | Y |
| Piston Rod Material | Stainless Steel |
| Piston Rod Thread | M27 x 2 |
| Piston Rod Thread Gender | Male |
| Stroke Length mm | 500 |
| Thread Type | BSPP |
| Working Pressure bar | 0.2 to 10 |
| Working Temperature | -20°C to +80°C |
