Description

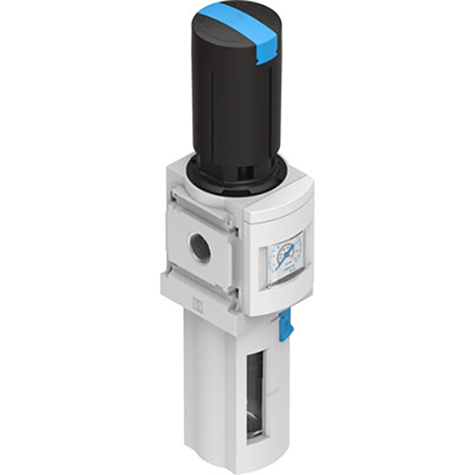

Filter Regulator MS6-LFR-1/2-D7-CRM-As-Z 12 bar Maximum Output Pressure, 5 ?Ám Filter, with Pressure Gauge, Lockable Regulator Head, Plastic Bowl with Plastic Bowl Guard, Manual Condensate Drain, Direction of Flow: From Right to Left. Size=6, Series=MS, Actuator Lock=(* Rotary Knob with Lock, * with Accessories, Lockable), Assembly Position=Vertical +/- 5°, Grade of Filtration=5 ?Ám, Festo
Specifications:
| Brand | Festo |
| Bowl Material | Plastic |
| Bowl Type | Plastic Bowl Guard |
| Capacity ml | 38 |
| Drain Type | Manual |
| Flow LPM | 4000 |
| Material | Die-cast Aluminium |
| Micron | 5 |
| Mounting | Vertical |
| Seal Material | Nitrile |
| Series | MS |
| Size | 6 |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 0.8 to 20 |
| Working Temperature | -10°C to +60°C |
