Description

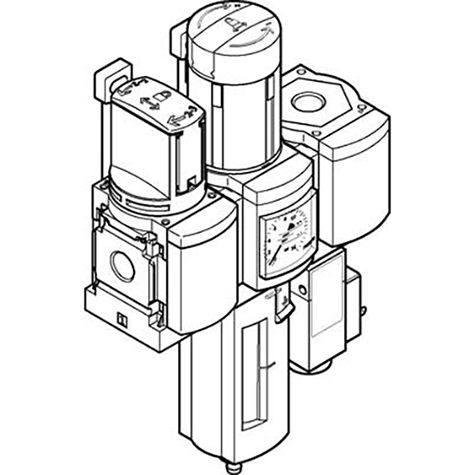

Service Unit Combination MSB6-1/2:C3J2F3-Wp Comprising Manual On-Off Valve, Filter Regulator, Branching Module with Pressure Switch without Display, Wall Mounting Plate Maximum Output Pressure 12 bar, 40 ?Ám Filter, with Pressure Gauge, Lockable Regulator Head, Plastic Bowl with Plastic Bowl Guard, Fully Automatic Condensate Drain, Flow Direction From Left to Right. Size=6, Series=MS, Actuator Lock=(* Rotary Knob with Lock, * with Accessories, Lockable), Assembly Position=Vertical +/- 5°, Grade of Filtration=40 ?Ám, Festo
Specifications:
| Brand | Festo |
| Bowl Material | Plastic |
| Bowl Type | Plastic Bowl Guard |
| Drain Type | Auto |
| Flow LPM | 4500 |
| Material | Die-cast Aluminium |
| Micron | 40 |
| Mounting | Vertical |
| Series | MS |
| Size | 6 |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 0.5 to 12 |
| Working Temperature | +5°C to +60°C |
