Description

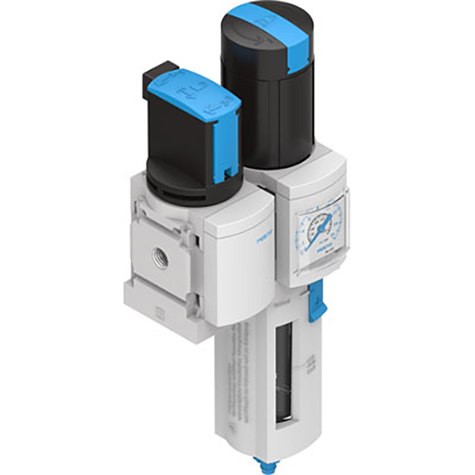

Service Unit Combination MSB6-1/2:C3J4-Wp Comprising Manual On-Off Valve, Filter Regulator, Wall Mounting Plate. Maximum Output Pressure 12 bar, 5 ?Ám Filter, with Pressure Gauge, Lockable Regulator Head, Plastic Bowl with Plastic Bowl Guard, Fully Automatic Condensate Drain, Flow Direction From Left to Right. Size=6, Series=MS, Actuator Lock=(* Rotary Knob with Lock, * with Accessories, Lockable), Assembly Position=Vertical +/- 5°, Grade of Filtration=5 ?Ám, Festo
Specifications:
| Brand | Festo |
| Bowl Material | Plastic |
| Bowl Type | Plastic Bowl Guard |
| Drain Type | Auto |
| Flow LPM | 480 |
| Material | Die-cast Aluminium |
| Micron | 5 |
| Mounting | Vertical |
| Series | MS |
| Size | 6 |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 2 to 12 |
| Working Temperature | +5°C to +60°C |
