Description

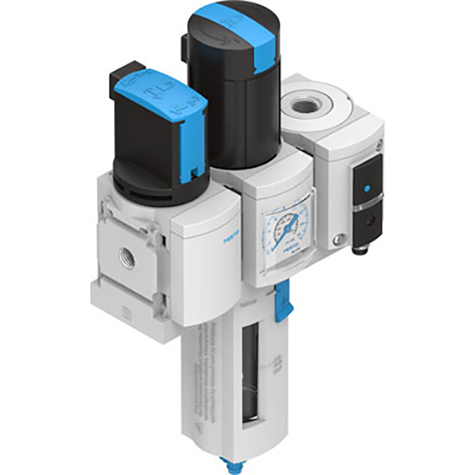

Service Unit Combination MSB6-1/2:C3:J1:F12-Wp Maximum Output Pressure 10 bar, 40 ?� Filter, with Pressure Gauge, Lockable Regulator Head, Plastic Bowl with Plastic Bowl Guard, Manual Condensate Drain, Flow Direction From Left to Right. Size=6, Series=MS, Actuator Lock=(* Rotary Knob with Lock, * with Accessories, Lockable), Assembly Position=Vertical +/- 5°, Grade of Filtration=40 ?�m, Festo
Specifications:
| Brand | Festo |
| Bowl Material | Plastic |
| Bowl Type | Plastic Bowl Guard |
| Drain Type | Manual |
| Flow LPM | 4500 |
| Material | Die-cast Aluminium |
| Micron | 40 |
| Mounting | Vertical |
| Series | MS |
| Size | 6 |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 0.8 to 18 |
| Working Temperature | 0°C to +50°C |
