Description

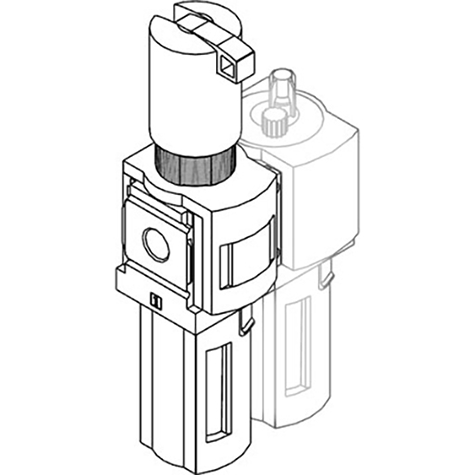

Service Unit Combination MSB6-1/2-Frc5:J1M1-Z Filter-Regulator-Lubricator Combination, 12 bar Maximum Output Pressure, 40 ?Ám Filter, with Pressure Gauge, Lockable Regulator Head, Plastic Bowl with Plastic Bowl Guard, Manual Condensate Drain, Direction of Flow: From Right to Left. Size=6, Series=MS, Actuator Lock=Rotary Knob with Integrated Lock, Assembly Position=Vertical +/- 5°, Condensate Drain=Manual Rotary, Festo
Specifications:
| Brand | Festo |
| Bowl Type | Plastic Bowl Guard |
| Drain Type | Manual Rotary |
| Flow LPM | 3700 |
| Micron | 40 |
| Mounting | Vertical |
| Series | MS |
| Size | 6 |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 1.5 to 20 |
| Working Temperature | -10°C to +60°C |
