Description

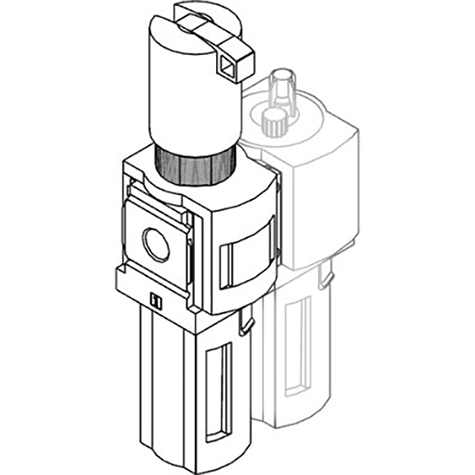

Service Unit Combination MSB6-1/2-Frc13:J120M1 Maximum Output Pressure 7 bar, 40 ?Á Filter, with Pressure Gauge, Lockable Regulator Head, Plastic Bowl with Plastic Bowl Guard, Manual Condensate Drain, Flow Direction From Left to Right. Size=6, Series=MS, Actuator Lock=(* Rotary Knob with Lock, * with Accessories, Lockable), Assembly Position=Vertical +/- 5°, Grade of Filtration=40 ?Ám, Festo
Specifications:
| Brand | Festo |
| Bowl Material | Plastic |
| Bowl Type | Plastic Bowl Guard |
| Drain Type | Manual Rotary |
| Flow LPM | 4800 |
| Material | Die-cast Aluminium |
| Micron | 40 |
| Mounting | Vertical |
| Series | MS |
| Size | 6 |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 0.8 to 18 |
| Working Temperature | -10°C to +60°C |
