Description

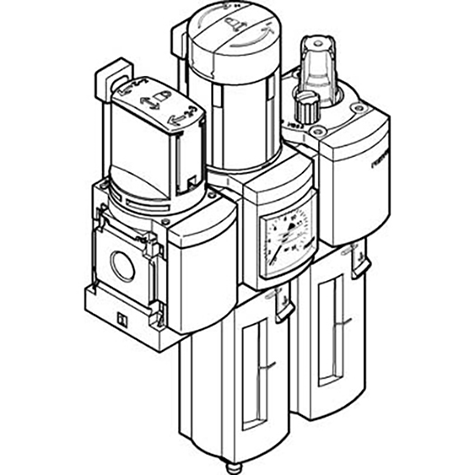

Service Unit Combination MSB6-1/2:C3J1M1-Wp Consisting of Manual On-Off Valve, Filter Regulator, Lubricator and Wall Mounting Plate. 12 bar Maximum Output Pressure, 40 ?Ám Filter, with Pressure Gauge, Lockable Regulator Head, Plastic Bowl with Plastic Bowl Guard, Manual Condensate Drain, Direction of Flow: From Left to Right. Size=6, Series=MS, Actuator Lock=(* Rotary Knob with Lock, * with Accessories, Lockable), Assembly Position=Vertical +/- 5°, Grade of Filtration=40 ?Ám, Festo
Specifications:
| Brand | Festo |
| Bowl Material | Plastic |
| Bowl Type | Plastic Bowl Guard |
| Drain Type | Manual Rotary |
| Flow LPM | 3100 |
| Material | Die-cast Aluminium |
| Micron | 40 |
| Mounting | Vertical |
| Series | MS |
| Size | 6 |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 1 to 12 |
| Working Temperature | -10°C to +60°C |
