Description

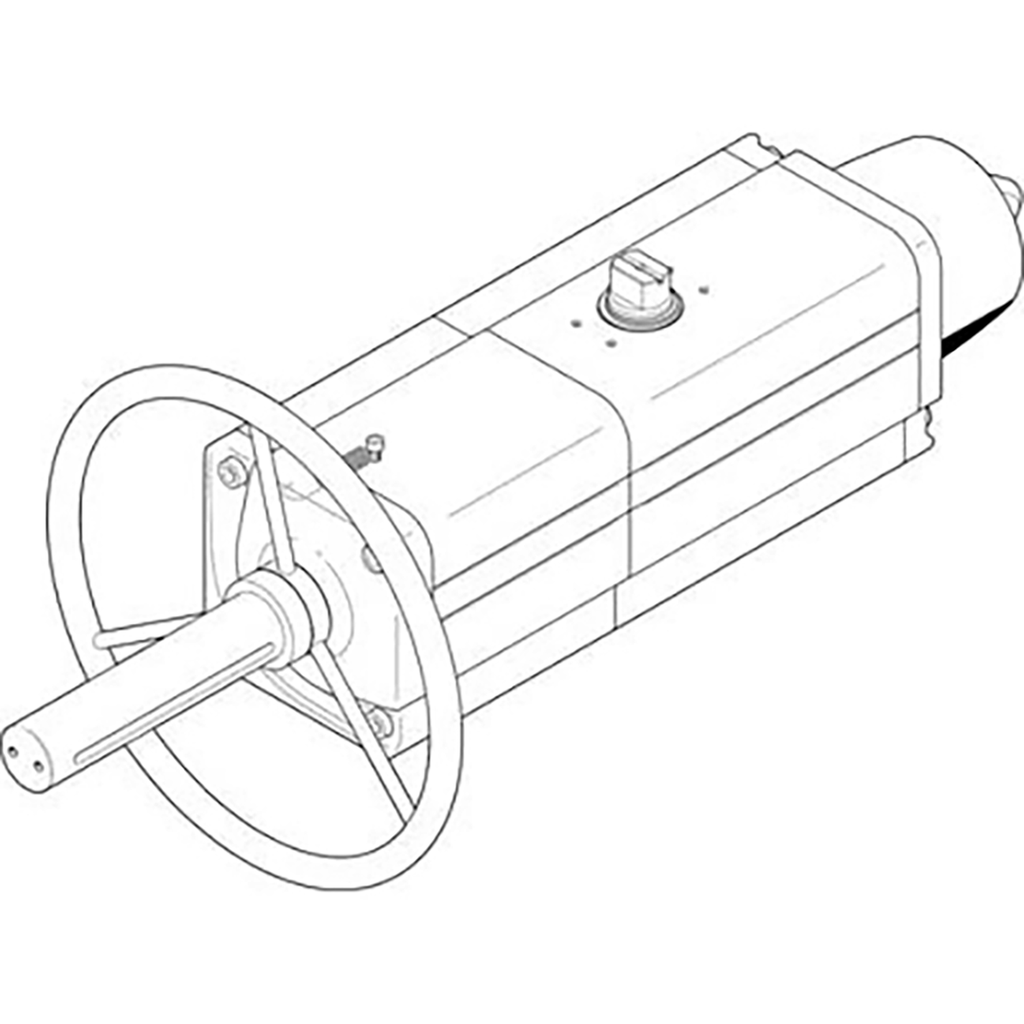

Semi-Rotary Drive Daps-0480-090-Rs4-F1012-Mw Single-Acting, Air Connection To Vdi/Vde 3845 Namur Valves, Direct Flange Mounting, Version With Handwheel. Size Of Actuator=0480, Flange Hole Pattern=(* F10, * F12), Swivel Angle=92 Deg, Shaft Connection Depth=38,5 Mm, Note Regarding End Position Setting Range=One Selectable End Position Is Adjustable, Festo
Specifications:
| Brand | Festo |
| Cushioning | No Cushioning |
| Material | Wrought Aluminium Alloy |
| Mounting | Any |
| Rotation Angle | 92° |
| Seal Material | Viton/Nitrile/PUR |
| Size | 480 |
| Standard | ISO 5211 |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 5.6 to 8.4 |
| Working Temperature | -20°C to 80°C |
