Description

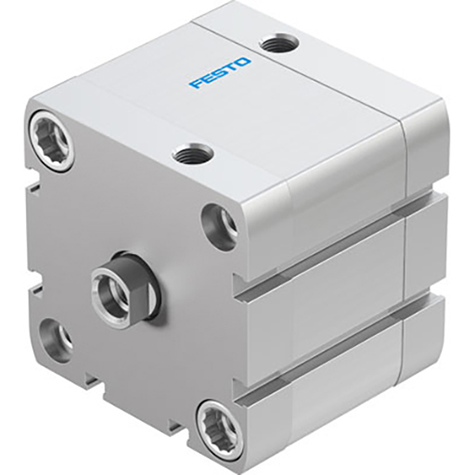

Compact Cylinder Adn-50-80-I-P-A Per Iso 21287, With Position Sensing And Internal Piston Rod Thread Stroke=80 Mm, Piston Diameter=50 Mm, Piston Rod Thread=M10, Cushioning=P: Flexible Cushioning Rings/Plates At both Ends, Assembly Position=Any, Festo
Specifications:
| Brand | Festo |
| Barrel Material | Wrought Aluminium Alloy |
| Bore Size mm | 50 |
| Cushioning | Pad Cushioning |
| Magnetic | Y |
| Piston Rod Material | High Alloy Steel |
| Piston Rod Thread | M10 |
| Piston Rod Thread Gender | Female |
| Seal Material | TPE-U |
| Stroke Length mm | 80 |
| Thread Type | BSPP |
| Working Pressure bar | 0.6 to 10 |
| Working Temperature | -20°C to +80°C |
