Description

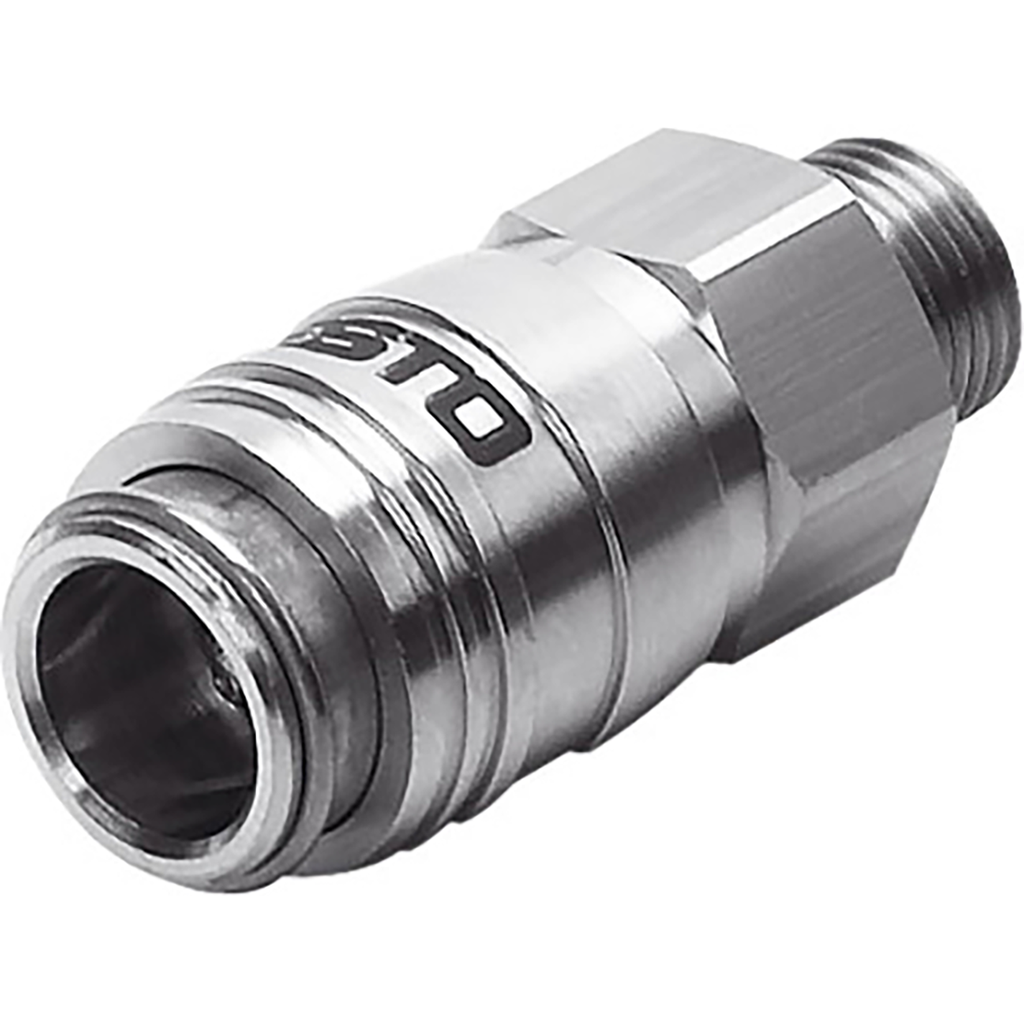

Coupling Socket Kd3-1/8-A-R Self-Closing with Non-Return Valve Nominal Size=5 Mm, Operating Pressure Complete Temperature Range=-0,95 - 12 bar, Operating Medium=Compressed Air In Accordance with Iso8573-1:2010 [7:-:-], Note On Operating and Pilot Medium=Lubricated Operation Possible, Corrosion Resistance Classification Crc=1 - Low Corrosion Stress
Specifications:
| Brand | Festo |
| Flow LPM | 563 |
| Material | Brass |
| Operation | Valved |
| Thread Gender | Male |
| Thread Type | BSPP |
| Working Pressure bar | -0.95 to 12 |
| Working Temperature | -10°C to +60°C |
