Description

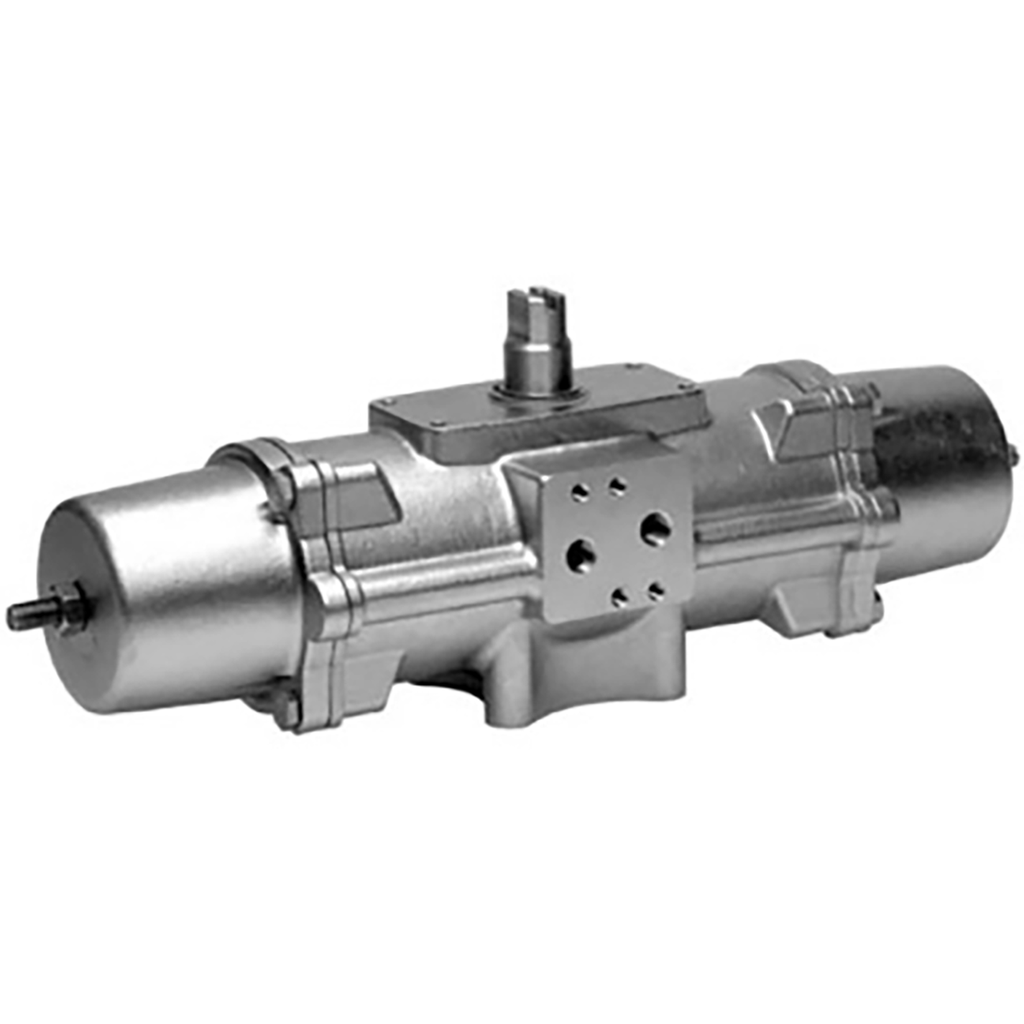

Semi-Rotary Drive Daps-0120-090-Rs4-F0507-Cr Single-Acting, Air Connection To Vdi/Vde 3845 Namur Valves, Direct Flange Mounting, Stainless Steel Version. Size Of Actuator=0120, Flange Hole Pattern=(* F05, * F07), Swivel Angle=90 Deg, Shaft Connection Depth=19,3 Mm, Fitting Connection Conforms To Standard=Iso 5211, Festo
Specifications:
| Brand | Festo |
| Cushioning | No Cushioning |
| Material | Stainless Steel |
| Mounting | Any |
| Rotation Angle | 90° |
| Seal Material | Viton/Nitrile/PUR |
| Size | 120 |
| Standard | ISO 5211 |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 5.6 to 8.4 |
| Working Temperature | -20°C to 80°C |
