Description

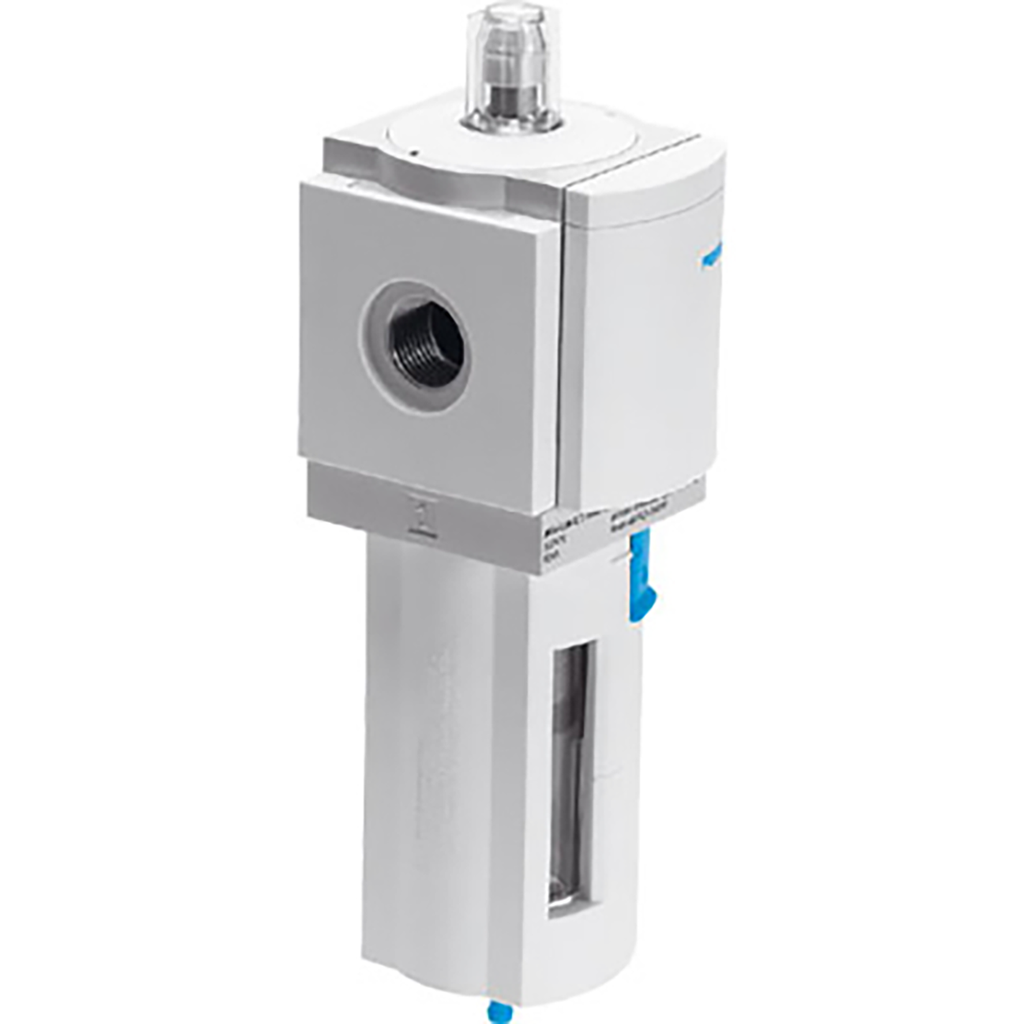

Micro Filter MS9-LFM-1-Auv-Da 0.01 ?Ám Filter, Metal Bowl Guard, Fully Automatic Condensate Drain, with Differential Pressure Indicator, Flow Direction From Left to Right. Series=MS, Size=9, Design Structure=Fibre Filter, Grade of Filtration=0,01 ?Ám, Condensate Drain=(* Fully Automatic, * Manual Momentary-Contact), Festo
Specifications:
| Brand | Festo |
| Bowl Material | Wrought aluminium alloy |
| Bowl Type | Integrated as Metal Bowl |
| Capacity ml | 225 |
| Drain Type | Auto |
| Flow LPM | 325 to 6500 |
| Material | Die-cast aluminium |
| Micron | 0.01 |
| Mounting | Vertical |
| Seal Material | Nitrile |
| Series | MS9 |
| Size | 9 |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 2 to 12 |
| Working Temperature | +5°C to +60°C |
