Description

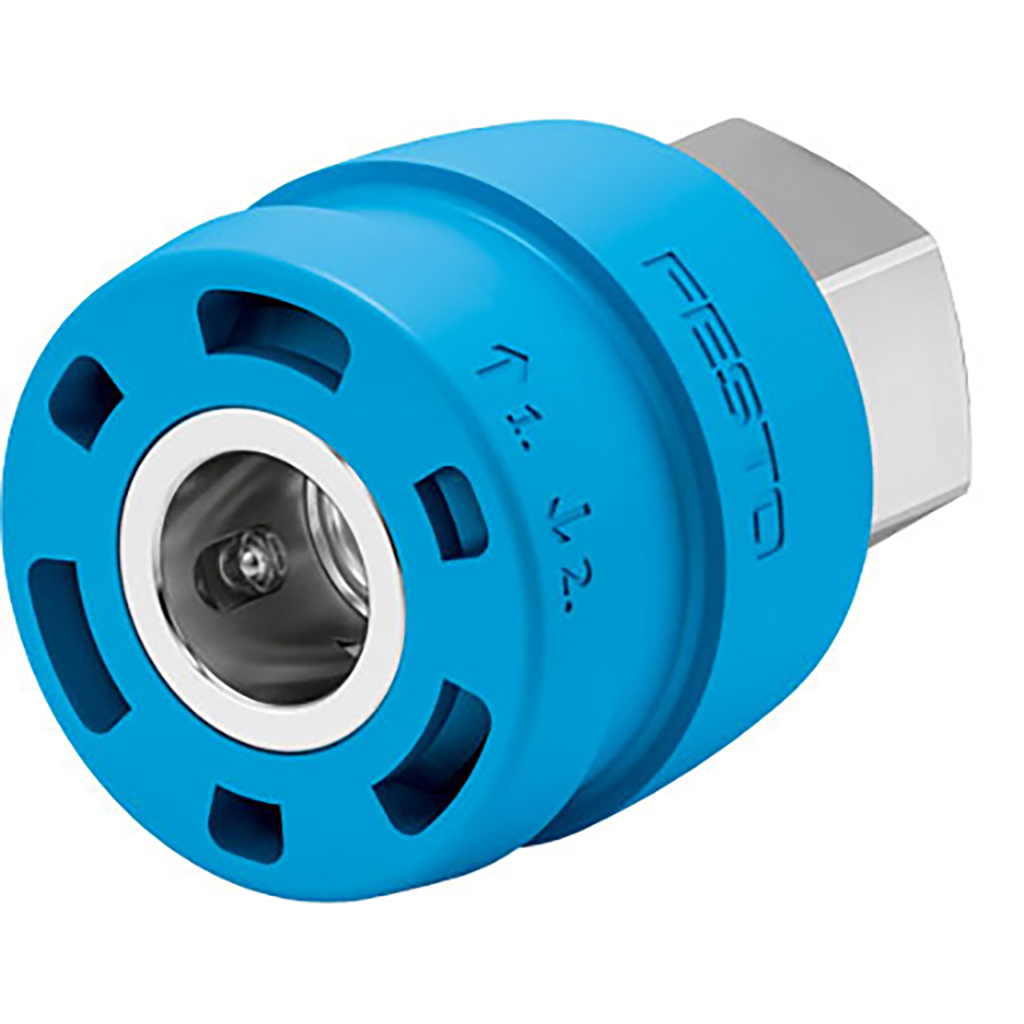

Coupling Socket Nphs-D6-P-G38F Operating Pressure Complete Temperature Range=-0,95 - 10 bar, Standard Nominal Flow Rate=2083 L/Min, Operating Medium=Compressed Air In Accordance with Iso8573-1:2010 [7:-:-], Note On Operating and Pilot Medium=Lubricated Operation Possible, Corrosion Resistance Classification Crc=1 - Low Corrosion Stress
Specifications:
| Brand | Festo |
| Flow LPM | 2083 |
| Material | Brass Nickel Plated |
| Operation | Valved |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | -0.95 to 10 |
| Working Temperature | -10°C to +60°C |
