Description

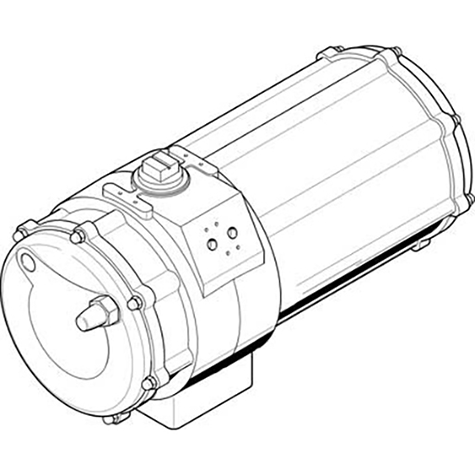

Semi-Rotary Drive Daps-1440-090-Rs4-F16-T6 Single-Acting, Air Connection To Vdi/Vde 3845 Namur Valves, Direct Flange Mounting, Low-Temperature Version. Size Of Actuator=1440, Flange Hole Pattern=F16, Swivel Angle=90 Deg, End-Position Adjustment Range At0°=-5 - 5 Deg, End-Position Adjustment Range At90°=85 - 95 Deg, Festo
Specifications:
| Brand | Festo |
| Cushioning | No Cushioning |
| Material | Wrought Aluminium Alloy |
| Mounting | Any |
| Rotation Angle | 90° |
| Seal Material | FVMQ/PTFE-reinforced |
| Size | 1440 |
| Standard | ISO 5211 |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 5.6 to 8.4 |
| Working Temperature | -50°C to 60°C |
