Description

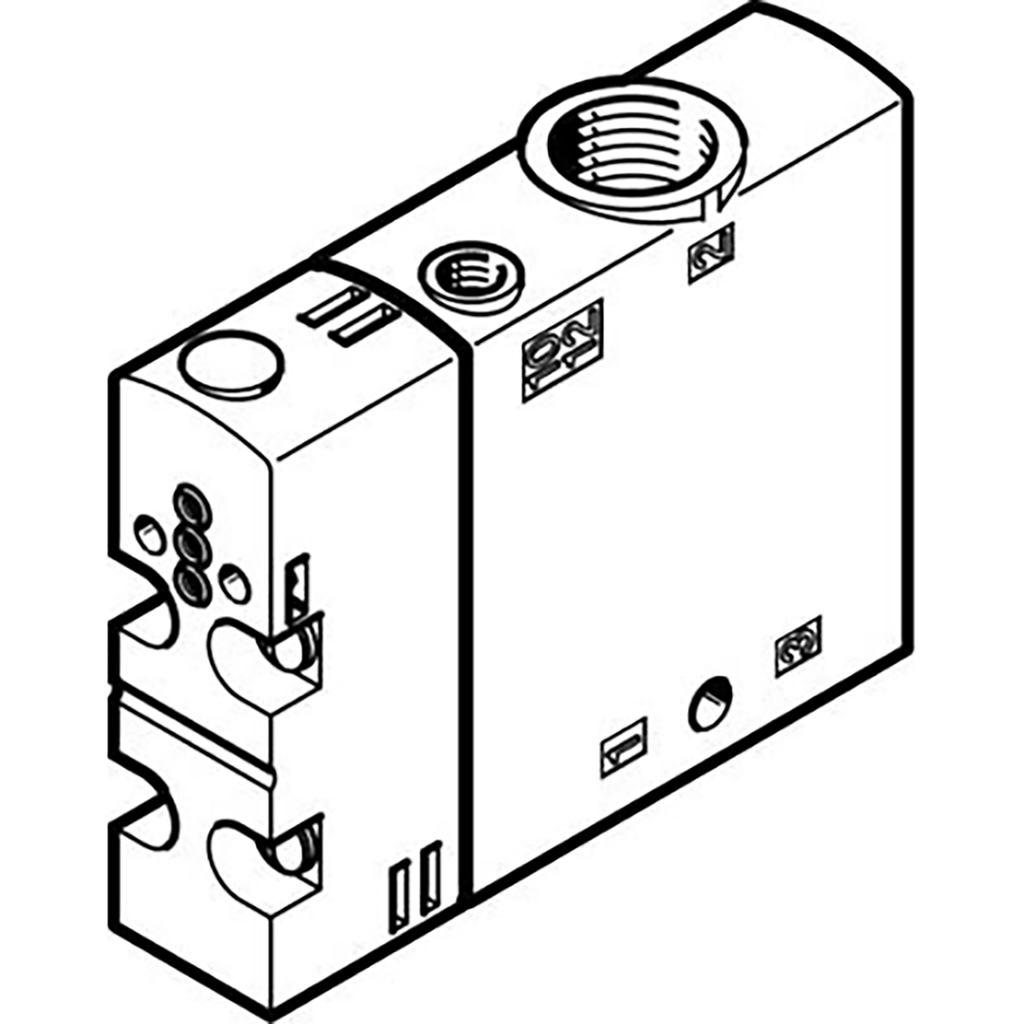

Basic Valve Cpe18-P1-3Ol-1/4 Very Compact Assembly, with Cnomo Interface. Valve Function=3/2 Open, Monostable, Type of Actuation=Via Pilot Interface to Iso 15218, Width=18 Mm, Standard Nominal Flow Rate=1700 L/Min, Operating Pressure=2,5 - 10 bar, Festo
Specifications:
| Brand | Festo |
| Actuation | Via pilot Interface to ISO 15218 |
| Flow LPM | 1700 |
| Function | 3/2 Open, Monostable |
| Housing Material | Die-cast Aluminium |
| Seal Material | Nitrile |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 2.5 to 10 |
| Working Temperature | -5°C to +50°C |
