Description

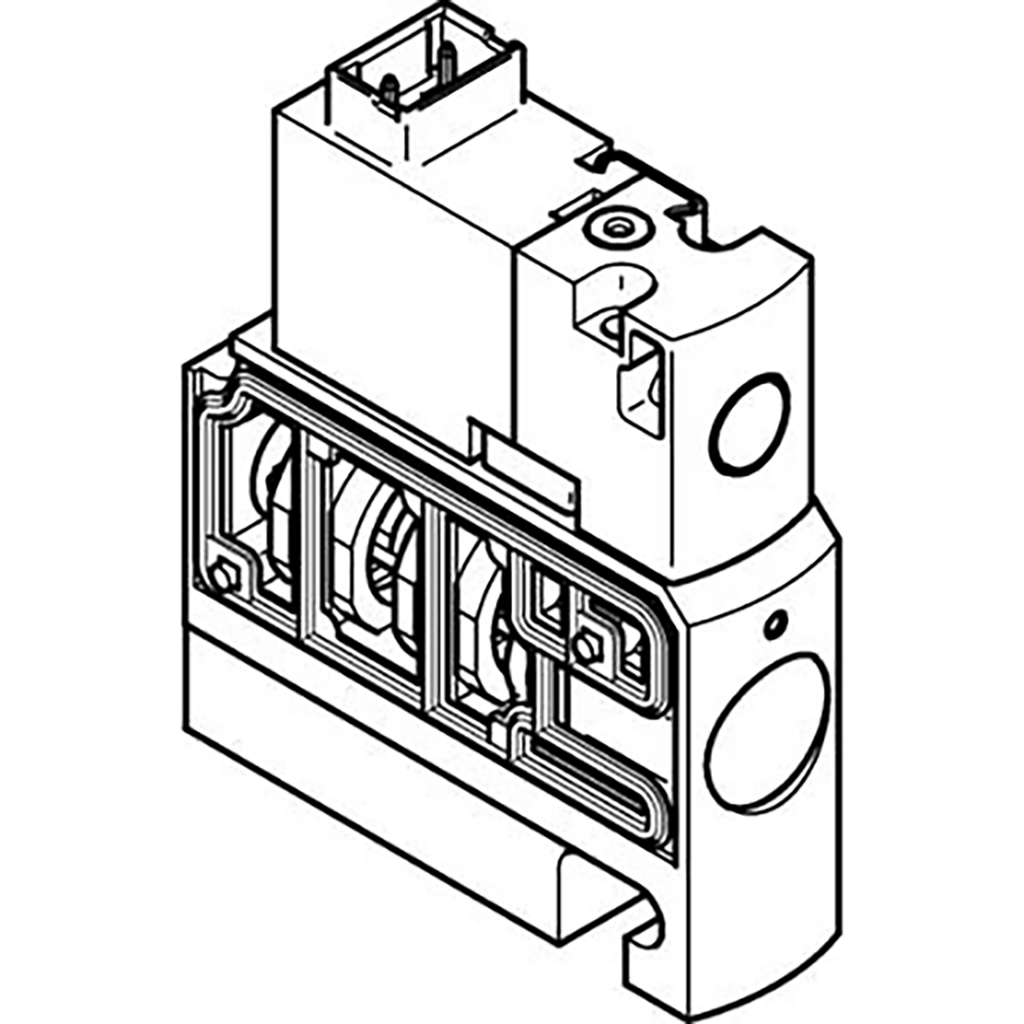

Solenoid Valve Cpvsc1-M1H-D-P-Q3C for Valve Terminal Cpv-Sc, Qs Push-In Connector. Valve Function=2/2 Closed, Monostable, Type of Actuation=Electrical, Valve Size=10 Mm, Standard Nominal Flow Rate=150 L/Min, Operating Pressure=-0,9 - 7 bar, Festo
Specifications:
| Brand | Festo |
| Actuation | Electrical, Pneumatic spring |
| Flow LPM | 150 |
| Function | 2/2 Normally Closed, Monostable |
| Material | Die-cast Aluminium |
| Outside Diameter mm | 3 |
| Seal Material | Nitrile |
| Size mm | 10 |
| Voltage | 22V DC |
| Working Pressure bar | -0.9 to 7 |
| Working Temperature | -5°C to +50°C |
