Description

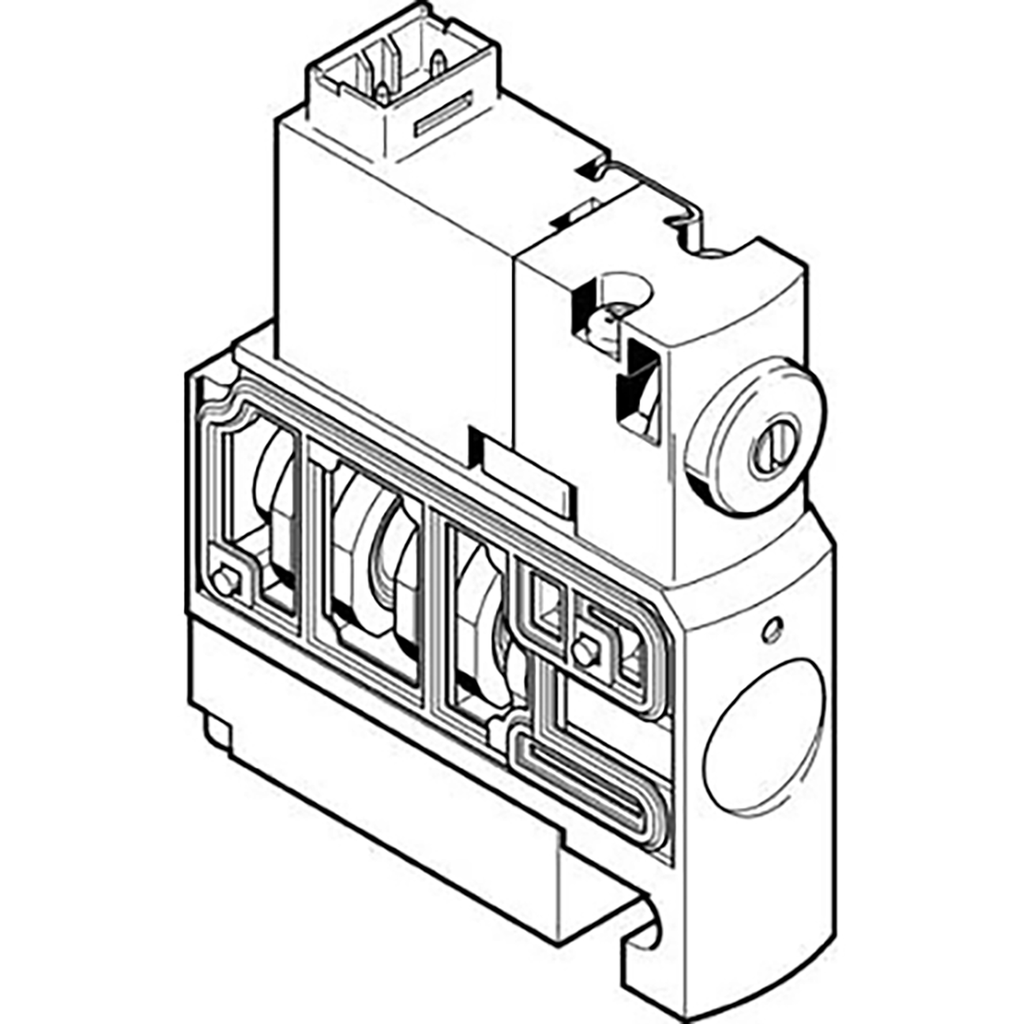

Solenoid Valve Cpvsc1-M1H-J-P-M5 for Valve Terminal Cpv-Sc, M5 Connection. Valve Function=5/2 Bistable, Type of Actuation=Electrical, Valve Size=10 Mm, Standard Nominal Flow Rate=170 L/Min, Operating Pressure=-0,9 - 7 bar, Festo
Specifications:
| Brand | Festo |
| Actuation | Electrical |
| Flow LPM | 170 |
| Function | 5/2 Bistable |
| Material | Die-cast Aluminium |
| Seal Material | Nitrile |
| Size mm | 10 |
| Thread Type | Metric |
| Voltage | 22V DC |
| Working Pressure bar | -0.9 to 7 |
| Working Temperature | -5°C to +50°C |
