Description

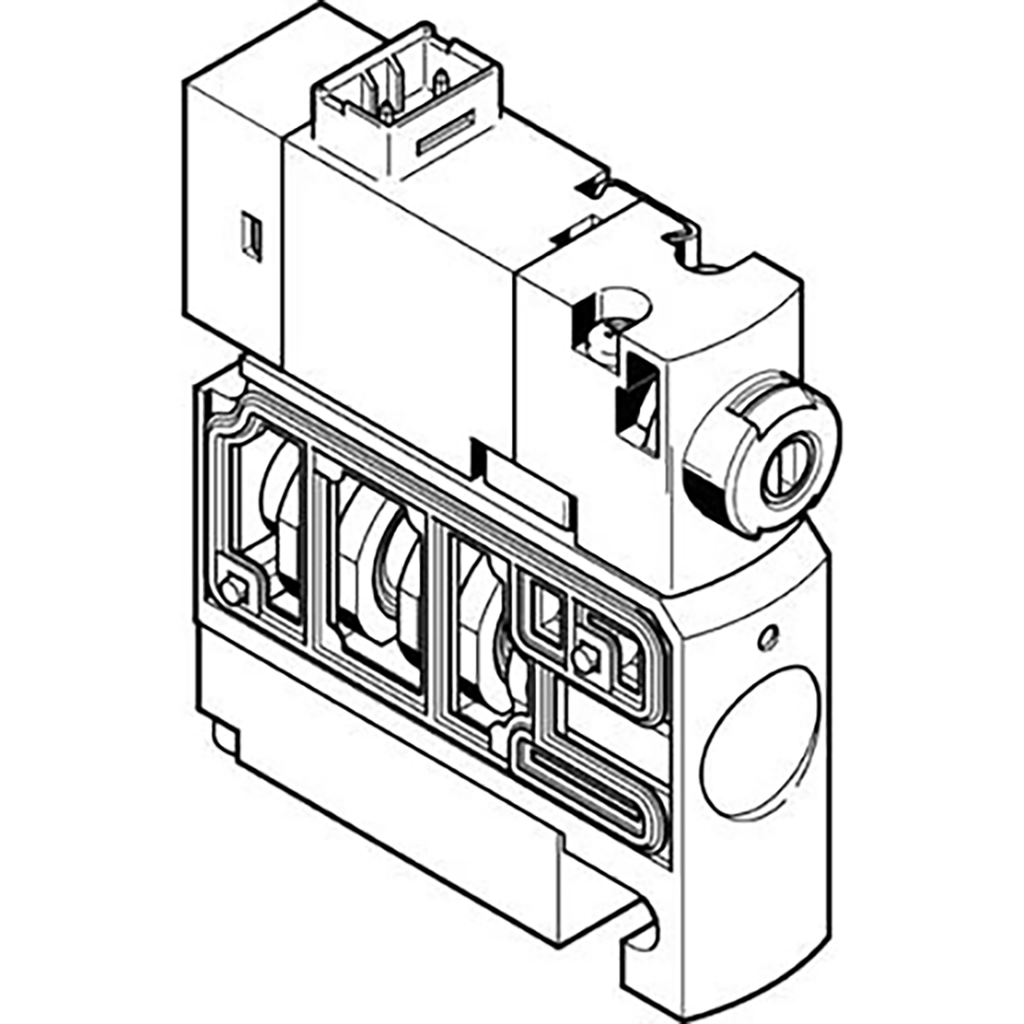

Solenoid Valve Cpvsc1-M1Lh-N-H-M5O for Valve Terminal Cpv-Sc, M5 Connection. Valve Function=3/2 Open, Monostable, Type of Actuation=Electrical, Valve Size=10 Mm, Standard Nominal Flow Rate=170 L/Min, Operating Pressure=-0,9 - 7 bar, Festo
Specifications:
| Brand | Festo |
| Actuation | Electrical, Pneumatic spring |
| Flow LPM | 170 |
| Function | 3/2 Normally Open, Monostable |
| Material | Die-cast Aluminium |
| Seal Material | Nitrile |
| Size mm | 10 |
| Thread Type | Metric |
| Voltage | 24V DC |
| Working Pressure bar | -0.9 to 7 |
| Working Temperature | -5°C to +50°C |
