Description

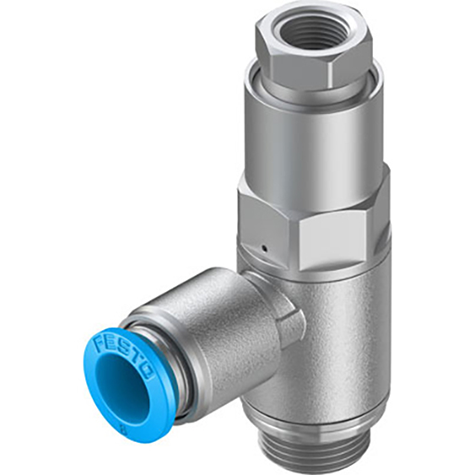

Piloted Check Valve Hgl-1/4-QS-8 with Sealing Ring Ol, with Qs Push-In Fitting. Valve Function=Piloted Non-Return Function, Pneumatic Connection, Port 1=Qs-8, Pneumatic Connection, Port 2=G1/4, Type of Actuation=Pneumatic, Pilot Air Port 21=G1/8, Festo
Specifications:
| Brand | Festo |
| Flow LPM | 640 |
| Function | Unlockable non-return |
| Material | Wrought aluminium alloy, Anodised |
| Mounting | Any |
| Outside Diameter mm | 8 |
| Seal Material | Nitrile |
| Thread Gender | Male |
| Thread Type | BSPP |
| Working Pressure bar | 0.5 to 10 |
| Working Pressure psi | 29 to 145 |
| Working Temperature | -10°C to 60°C |
