Description

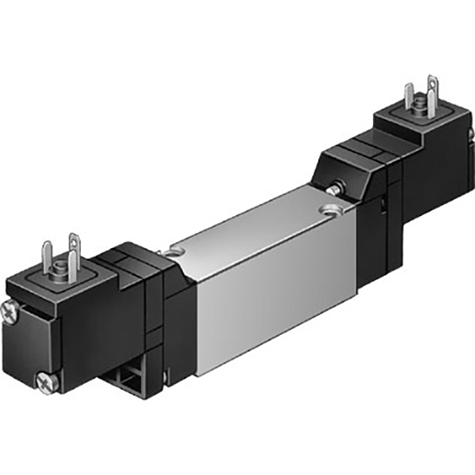

Solenoid Valve Jmebh-5/2-5,0-S-B with Solenoid Coils and Manual Override, without Plug Sockets. Valve Function=5/2 Bistable, Type of Actuation=Electrical, Width=17,8 Mm, Standard Nominal Flow Rate=700 L/Min, Operating Pressure=-0,9 - 10 bar, Festo
Specifications:
| Brand | Festo |
| Actuation | Electrical |
| Flow LPM | 700 |
| Function | 5/2 Bistable |
| Housing Material | Die-cast Aluminium |
| Seal Material | Nitrile |
| Voltage | 24V DC |
| Working Pressure bar | -0.9 to 10 |
| Working Temperature | -5°C to +50°C |
