Description

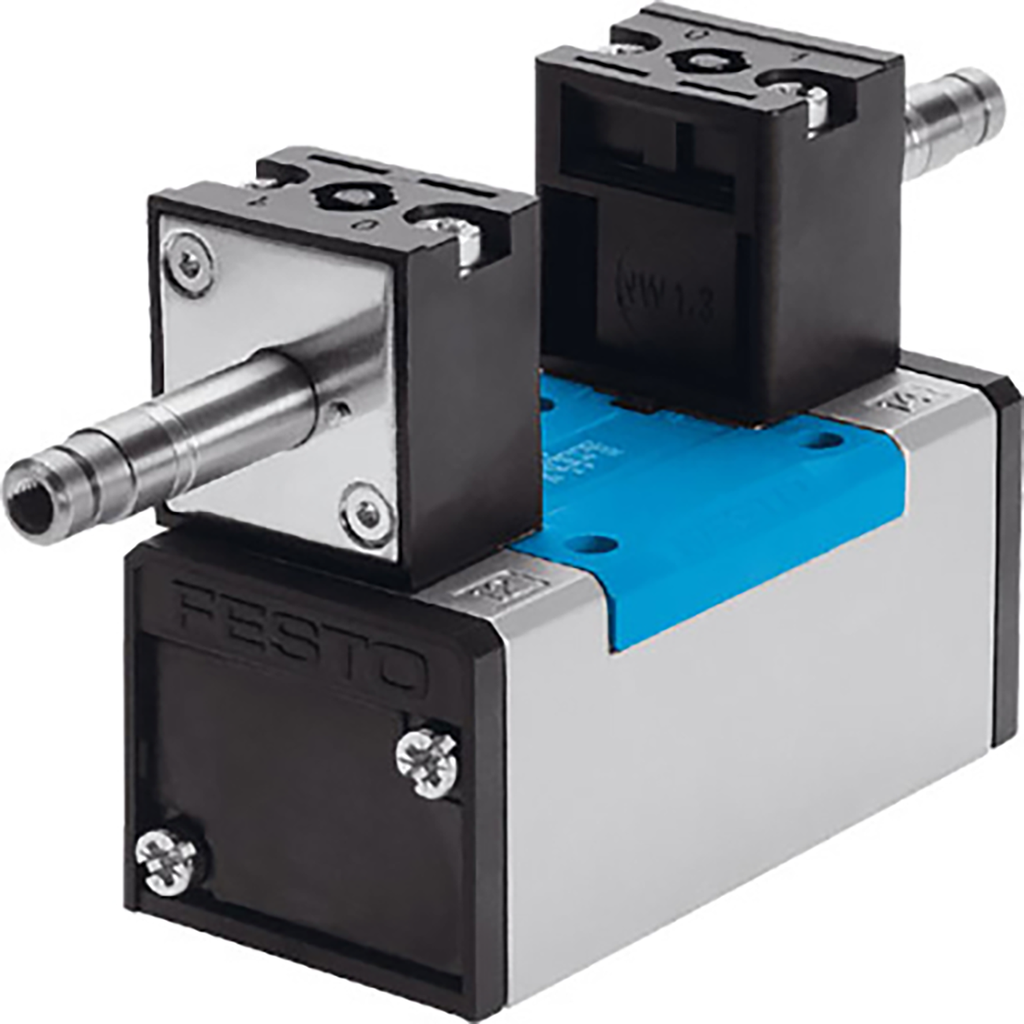

Solenoid Valve Jmn1Dh-5/2-D-1-S-C As Per Iso 5599/1, with Manual Overrides, without Solenoid Coils orSockets. Solenoid Coils and Sockets Should Be Ordered Separately. Valve Function=5/2 Bistable-Dominant, Type of Actuation=Electrical, Width=42 Mm, Standard Nominal Flow Rate=1200 L/Min, Operating Pressure=-0,9 - 16 bar, Festo
Specifications:
| Brand | Festo |
| Actuation | Electrical |
| Flow LPM | 1200 |
| Function | 5/2 Bistable-Dominant |
| Housing Material | Die-cast Aluminium |
| Seal Material | Nitrile |
| Size | 1 |
| Working Pressure bar | -0.9 to 16 |
| Working Temperature | -5°C to +50°C |
