Description

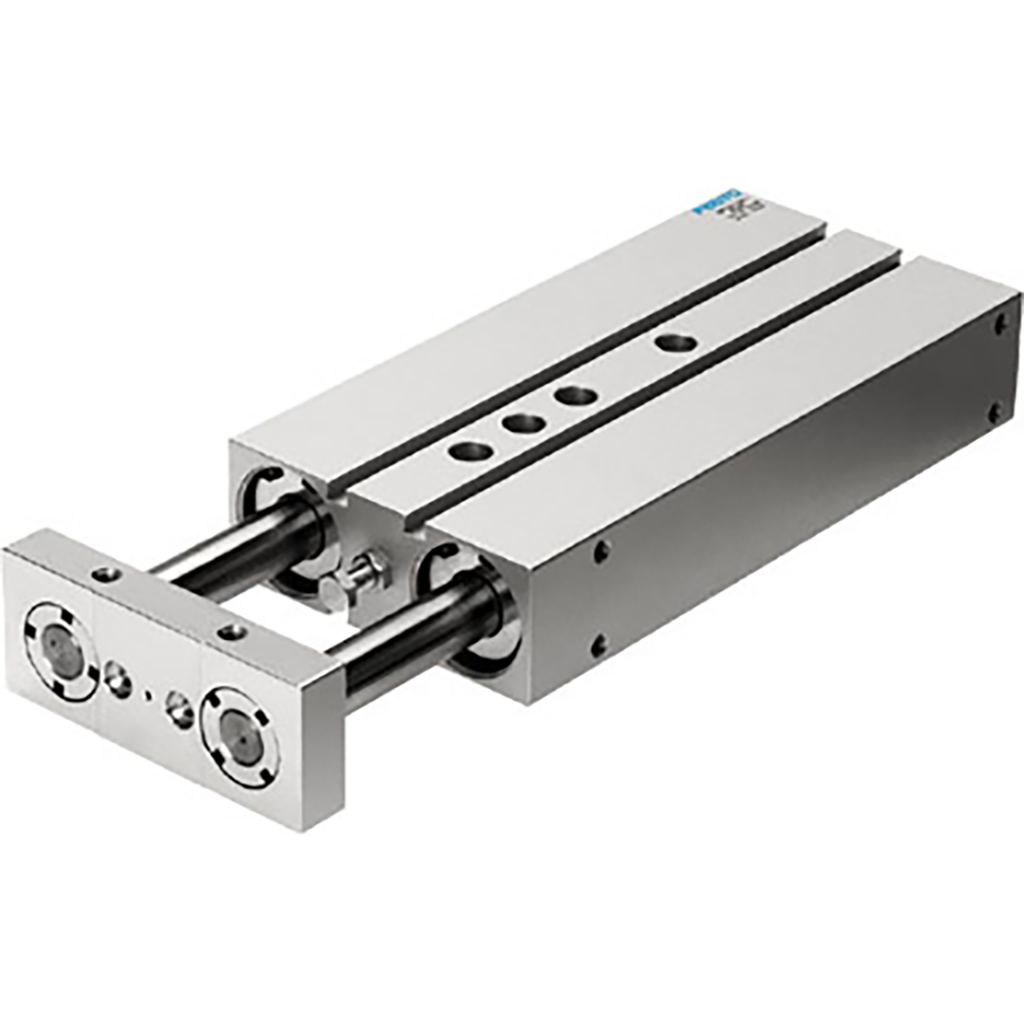

Twin-Piston Cylinder Dpz-16-100-P-A With Two Parallel Piston Rods, For Proximity Sensing, With Elastic Cushioning Rings In End Positions. Centre Of Gravity Distance From Working Load To Yoke Plate=0 Mm, Stroke=100 Mm, Adjustable End-Position Range/Length=10 Mm, Piston Diameter=16 Mm, Operating Mode Of Drive Unit=Yoke, Festo
Specifications:
| Brand | Festo |
| Bore Size mm | 16 |
| Cushioning | Pad Cushioning |
| Magnetic | Y |
| Material | Wrought Aluminium Alloy |
| Mounting | Any |
| Piston Rod Material | Stainless Steel |
| Seal Material | Nitrile |
| Stroke Length mm | 100 |
| Thread Gender | Female |
| Thread Type | Metric |
| Working Pressure bar | 1 to 10 |
| Working Temperature | -20°C to 80°C |
