Description

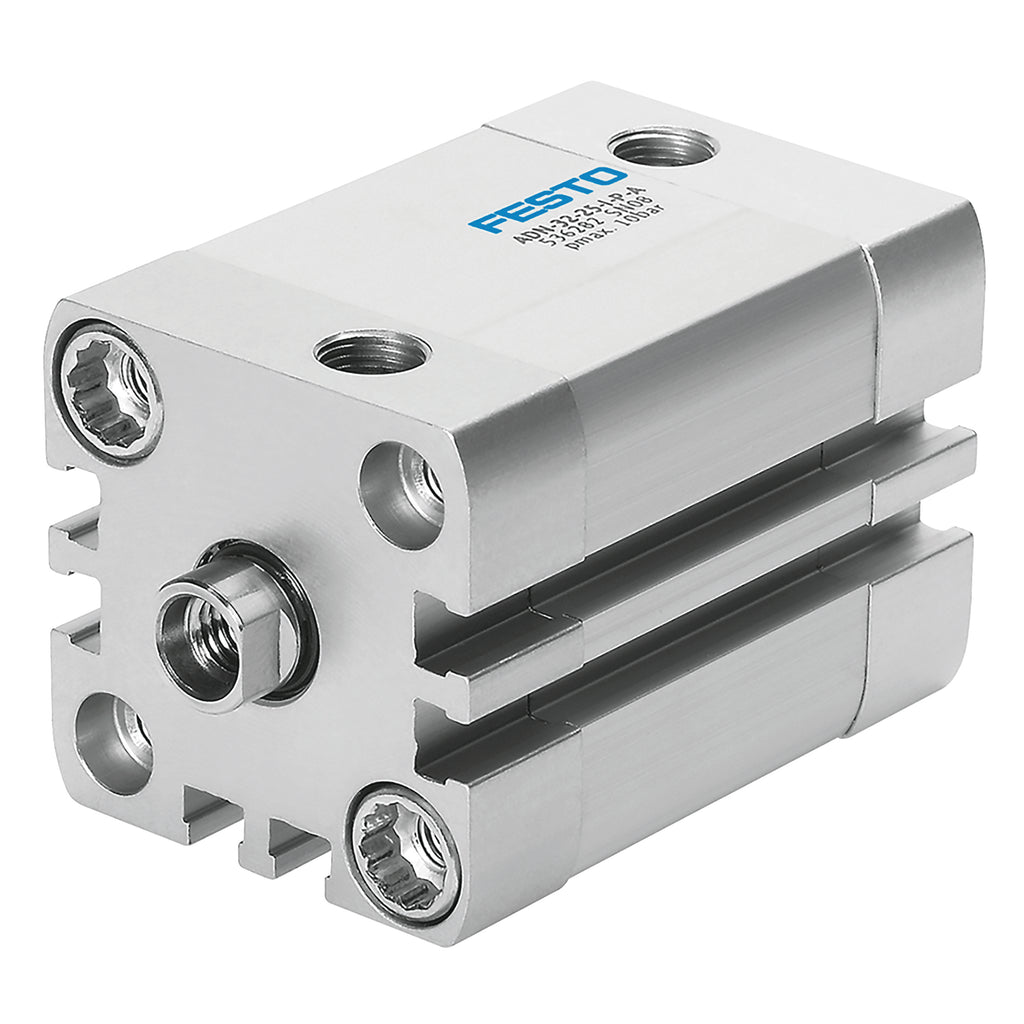

Compact Cylinder Adn-25-30-I-P-A Per Iso 21287, With Position Sensing And Internal Piston Rod Thread Stroke=30 Mm, Piston Diameter=25 Mm, Piston Rod Thread=M6, Cushioning=P: Flexible Cushioning Rings/Plates At Both Ends, Assembly Position=Any, Festo
Specifications:
| Brand | Festo |
| Barrel Material | Wrought Aluminium Alloy |
| Bore Size mm | 25 |
| Cushioning | Pad Cushioning |
| Magnetic | Y |
| Piston Rod Material | High Alloy Steel |
| Piston Rod Thread | M6 |
| Piston Rod Thread Gender | Female |
| Seal Material | TPE-U |
| Stroke Length mm | 30 |
| Thread Type | Metric |
| Working Pressure bar | 0.6 to 10 |
| Working Temperature | -20°C to +80°C |
