Description

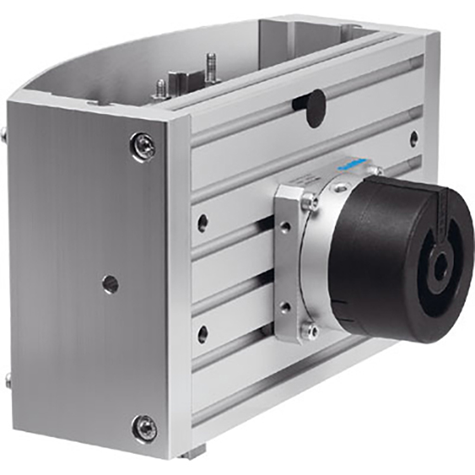

Handling Module Hsp-16-Ap-Sd-Wr with Semi-Rotary Drive, Protective Cover and Wait Position Module On Right. Size=16, Maximum Z-Stroke, Wait Position=25 Mm, Y Stroke=90 - 110 Mm, Z Stroke=35 - 50 Mm, Z Stroke, Working Stroke=20 Mm, Festo
Specifications:
| Brand | Festo |
| Magnetic | Y |
| Material | Wrought Aluminium Alloy |
| Size mm | 16 |
| Thread Type | Metric |
| Working Pressure bar | 4 to 8 |
| Working Temperature | 0°C to +60°C |
