Description

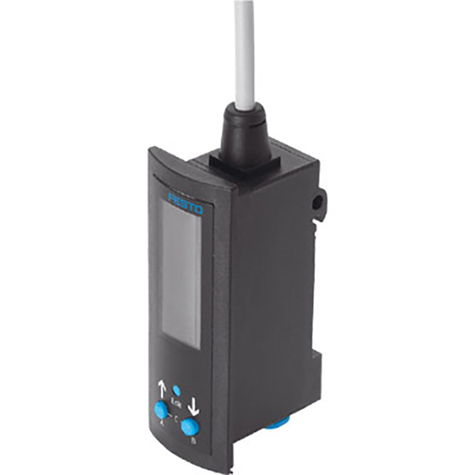

Pressure Sensor Sde3-V1D-B-Fq4-2P-M8 for Vacuum with M8 Plug Version. Authorisation=Rcm Mark, Ce Mark (See Declaration of Conformity)=To Eu Directive for Emc, Materials Note=(* Free of Copper and Ptfe, * Conforms to Rohs), Measured Variable=2 X Relative Pressure, Measurement Method=Piezoresistive Pressure Sensor with Display, Festo
Specifications:
| Brand | Festo |
| Cable Length Metres | 0.3 |
| Function | 2 x PNP Switchable |
| Material | Nylon/Polycarbonate |
| Plug | M8 x 1 |
| To Suit OD mm | 4 |
| Voltage | 15 V DC to 30 V DC |
| Working Pressure bar | 0 to -1 |
| Working Temperature | 0°C to +50°C |
