Description

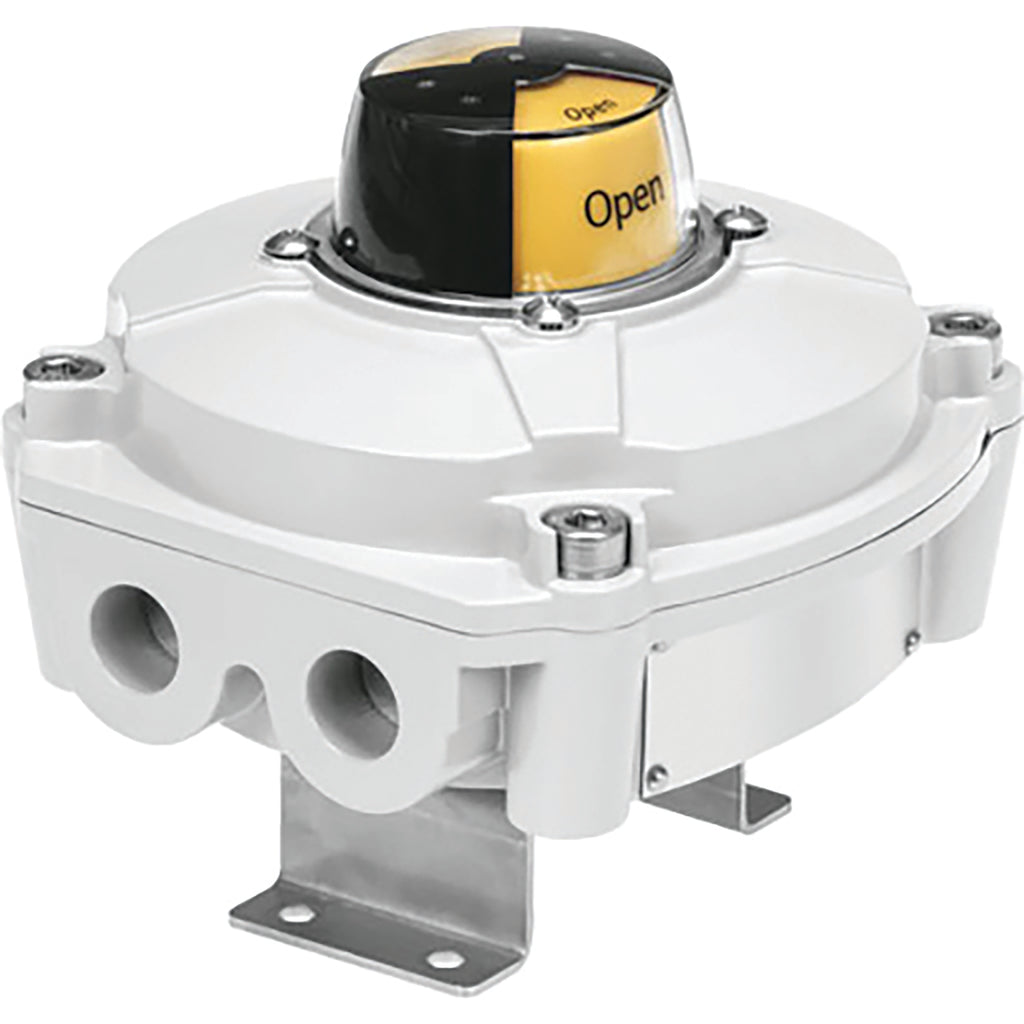

Sensor Box Srbe-Ca3-Yr90-N-1-P-C2M20-Ex For Electrical Feedback And Position Monitoring Of Process Valves Actuated With Pneumatic Quarter Turn Actuators, Inductive Measuring Principle. Design=Angular, Based On The standard=(* En 60947-5-2, * Iso 5211, * Vdi/Vde 3845), Authorisation=Rcm Mark, Ce Mark (See Declaration Of Conformity)=(* To Eu Directive For Emc, * To Eu Directive Explosion Protection (Atex)), Atex Category Gas=Ii 2G, Festo
Specifications:
| Brand | Festo |
| Colour | Silver |
| Connecting Cable | M20 x 1.5 |
| Material | Die-cast Aluminum |
| Mounting | Any |
| Rotation Angle | 0 to 90° |
| Seal Material | Nitrile |
| Voltage | 10V to 30V |
| Working Temperature | -20°C to 60°C |
