Description

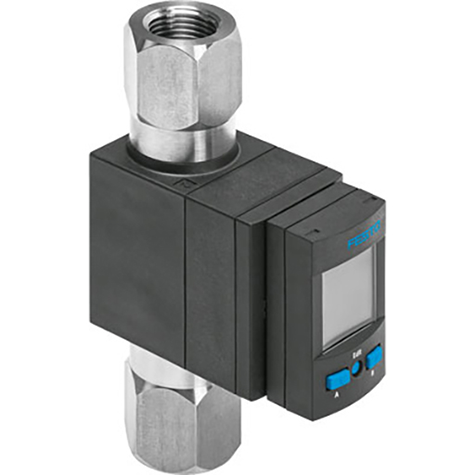

Flow Sensor Sfaw-100-Tg34-E-Pnlk-Pnvba-M12 for Measuring and Monitoring Flow Rate, Volume and Temperature of Liquid Media, Flow Measuring Range 100L/Min. Authorisation=(* Rcm Mark, * C Ul Us - Listed (Ol)), Ce Mark (See Declaration of Conformity)=(* to Eu Directive for Emc, * In Accordance with Eu Rohs Directive), Kc Mark=Kc-Emv, Materials Note=Conforms to Rohs, Measured Variable=(* Flow Rate , * Temperature), Festo
Specifications:
| Brand | Festo |
| Flow LPM | 5 to 100 |
| Material | Nylon |
| Plug | M12 x 1 |
| Thread Gender | Female |
| Thread Type | BSPP |
| Voltage | 18 V DC to 30 V DC |
| Working Pressure bar | 0 to 12 |
| Working Temperature | 0°C to +50°C |
