Description

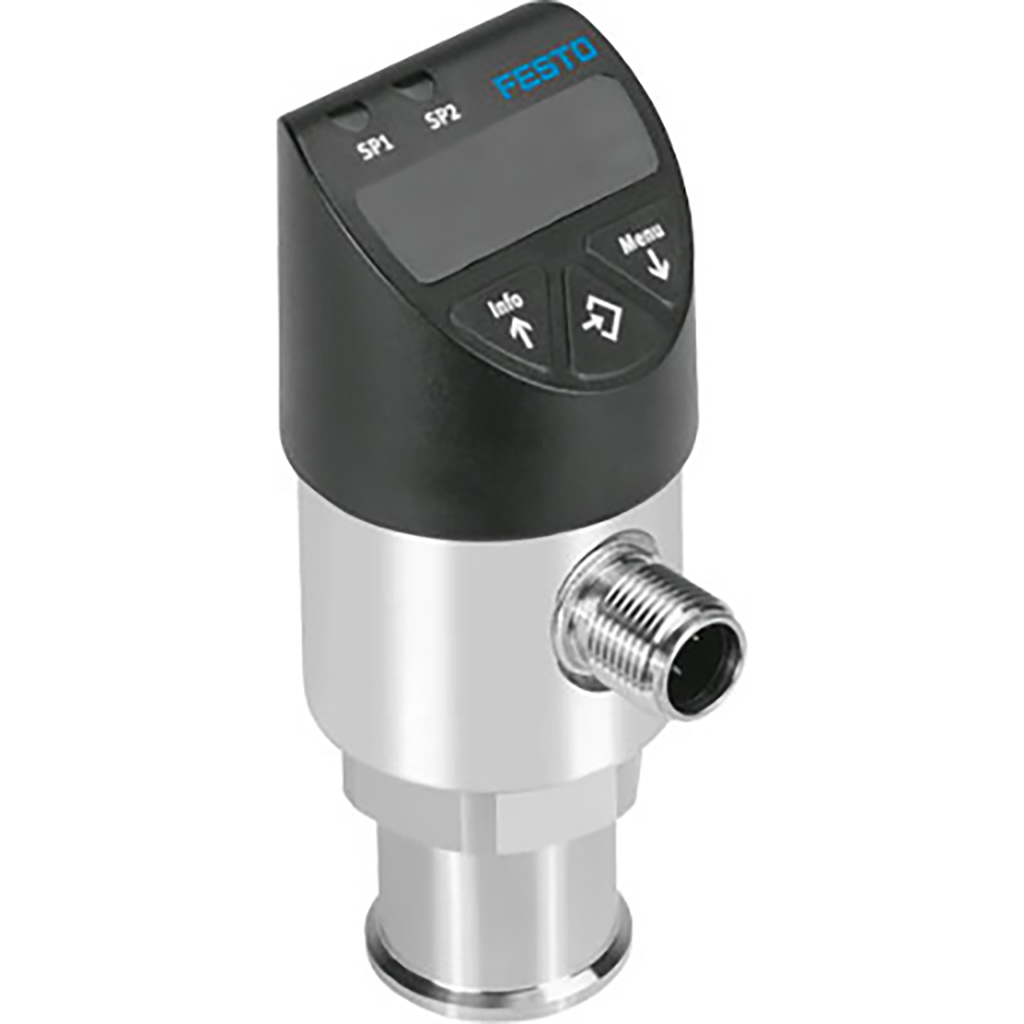

Pressure Sensor Spaw-B11R-G14F-2P-M12 for Measuring Media Pressures, Pressure Measuring Range Between -1 and +10 bar, Pneumatic Connection Female Thread G1/4. Authorisation=(* Rcm Mark, * C Ul Us - Listed (Ol)), Ce Mark (See Declaration of Conformity)=To Eu Directive for Emc, Materials Note=(* Contains Pwis Substances, * Conforms to Rohs), Measured Variable=Relative Pressure, Measurement Method=Thin Metal Film Pressure Sensor, Festo
Specifications:
| Brand | Festo |
| Function | 2 x PNP |
| Material | Stainless Steel/ABS |
| Plug | M12 x 1 |
| Seal Material | Nitrile |
| Thread Gender | Female |
| Thread Type | BSPP |
| Voltage | 15 V DC to 35 V DC |
| Working Pressure bar | -1 to 10 |
| Working Temperature | 0°C to +80°C |
