Description

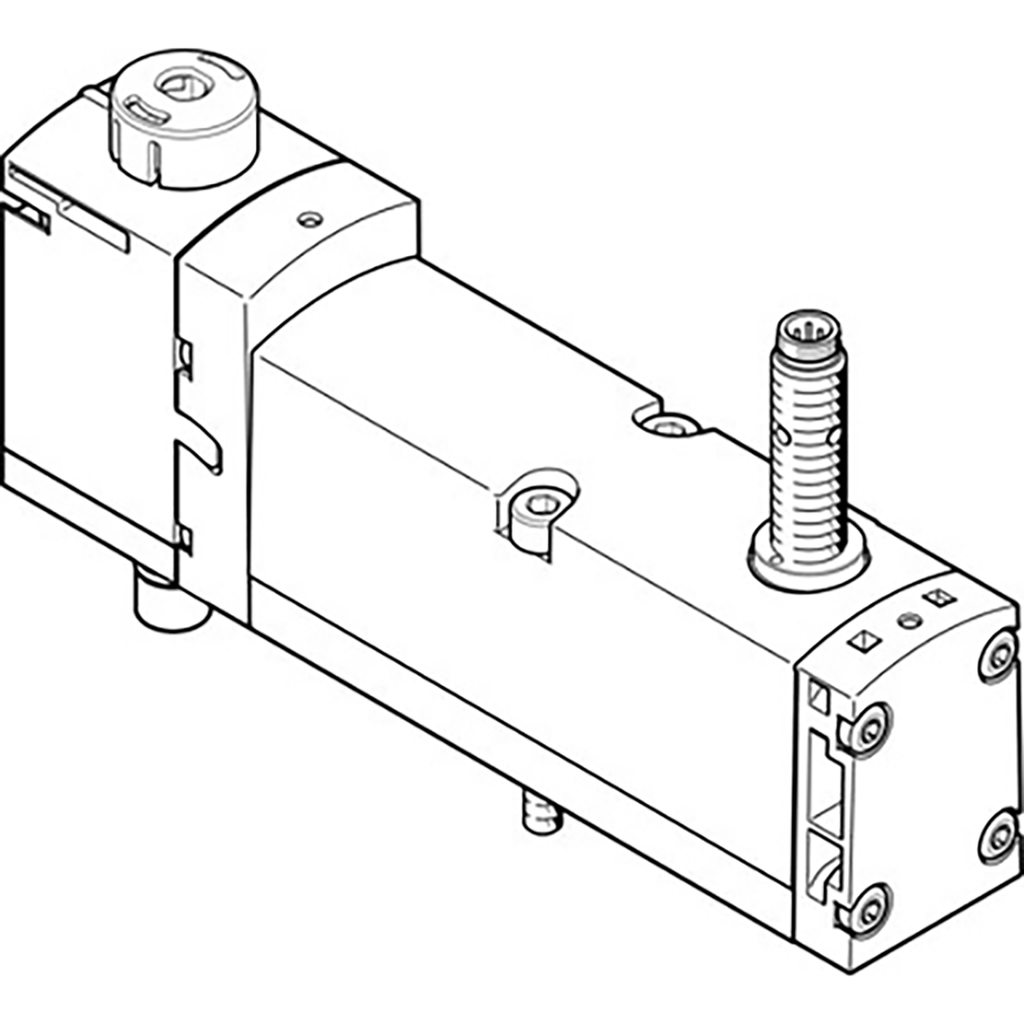

Solenoid Valve Vsva-B-M52-Mzh-A1-1T1L-Apx-0.5 Valve Function=5/2 Monostable, Type of Actuation=Electrical, Width=26 Mm, Standard Nominal Flow Rate=1100 L/Min, Operating Pressure=-0,9 - 10 bar, Festo
Specifications:
| Brand | Festo |
| Actuation | Electrical, Mechanical Spring |
| Flow LPM | 1100 |
| Function | 5/2 Monostable |
| Material | Die-cast Aluminium/PA |
| Plug | M12 x 1 |
| Seal Material | Viton/Nitrile |
| Thread Type | BSPP |
| Voltage | 24V DC |
| Width mm | 26 |
| Working Pressure bar | -0.9 to 10 |
| Working Temperature | -5°C to +50°C |
