Description

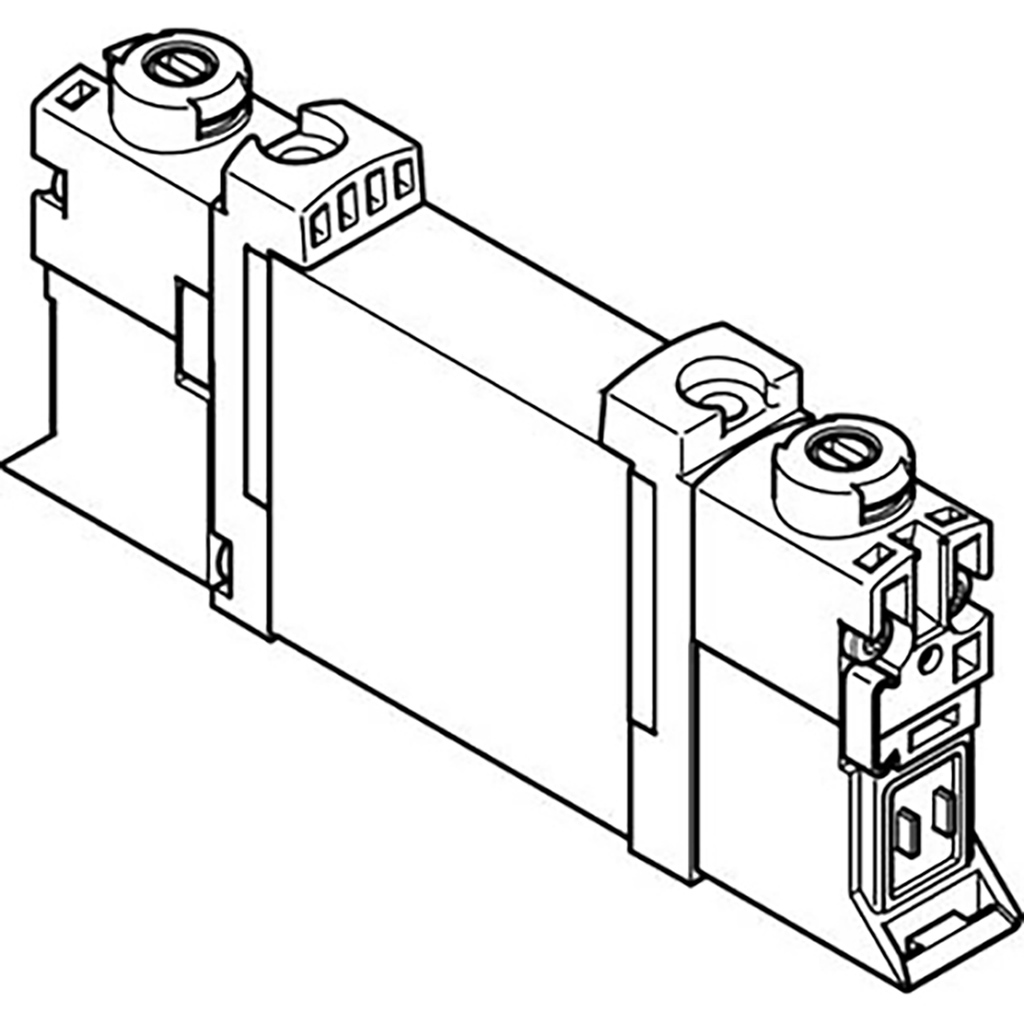

Solenoid Valve Vuvg-B10A-P53E-Zt-F-1P3 Valve Function=5/3 Exhausted, Type of Actuation=Electrical, Valve Size=10 Mm, Standard Nominal Flow Rate=90 L/Min, Operating Pressure=-0,9 - 10 bar, Festo
Specifications:
| Brand | Festo |
| Actuation | Electrical, Mechanical Spring |
| Flow LPM | 90 |
| Function | 5/3 Exhausted |
| Material | Wrought Aluminium Alloy |
| Seal Material | Nitrile |
| Size mm | 10 |
| Voltage | 24 V DC |
| Working Pressure bar | -0.9 to 10 |
| Working Temperature | -5°C to +60°C |
