Description

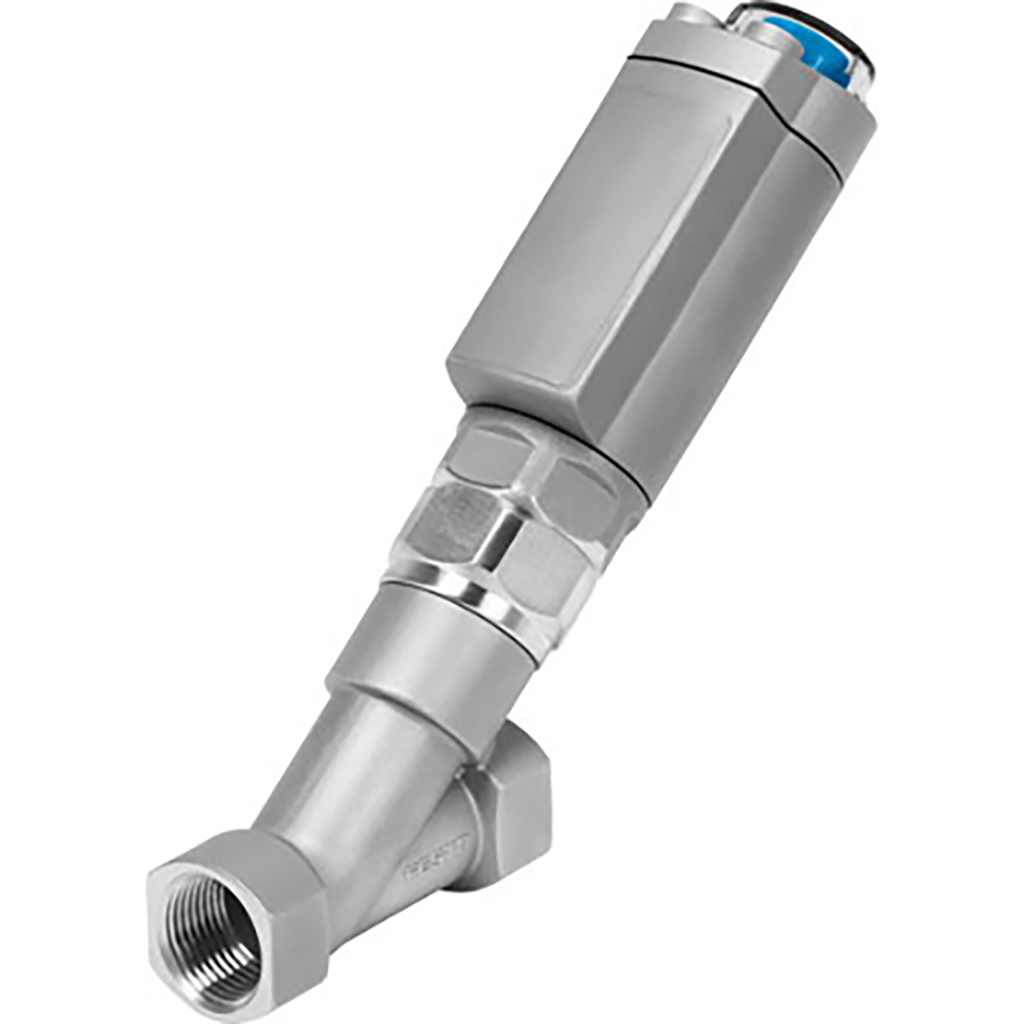

Angle Seat Valve Vzxa-B-Ts7-1/2"-M2-V14T-30-K-46-17-V4 Modular, Pneumatically Actuated Angle Seat Valve In Stainless Steel. Under Seat Version, Safety Position Closed, Npt Thread, Nominal Width 1/2". Design Structure=Poppet Valve with Piston Actuator, Type of Actuation=Pneumatic, Assembly Position=Any, Mounting Type=Line Installation, Line Connection=Threaded Coupling 1/2 Npt to Ansi/Asme B 1.20.1, Festo
Specifications:
| Brand | Festo |
| Flow LPM | 6600 |
| Function | 2 Way Normally Closed |
| Material | Cast Stainless Steel |
| Seal Material | PTFE |
| Size mm | 46 |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 5 to 10 |
| Working Pressure psi | 72.5 to 145 |
| Working Temperature | -10°C to +180°C |
