Description

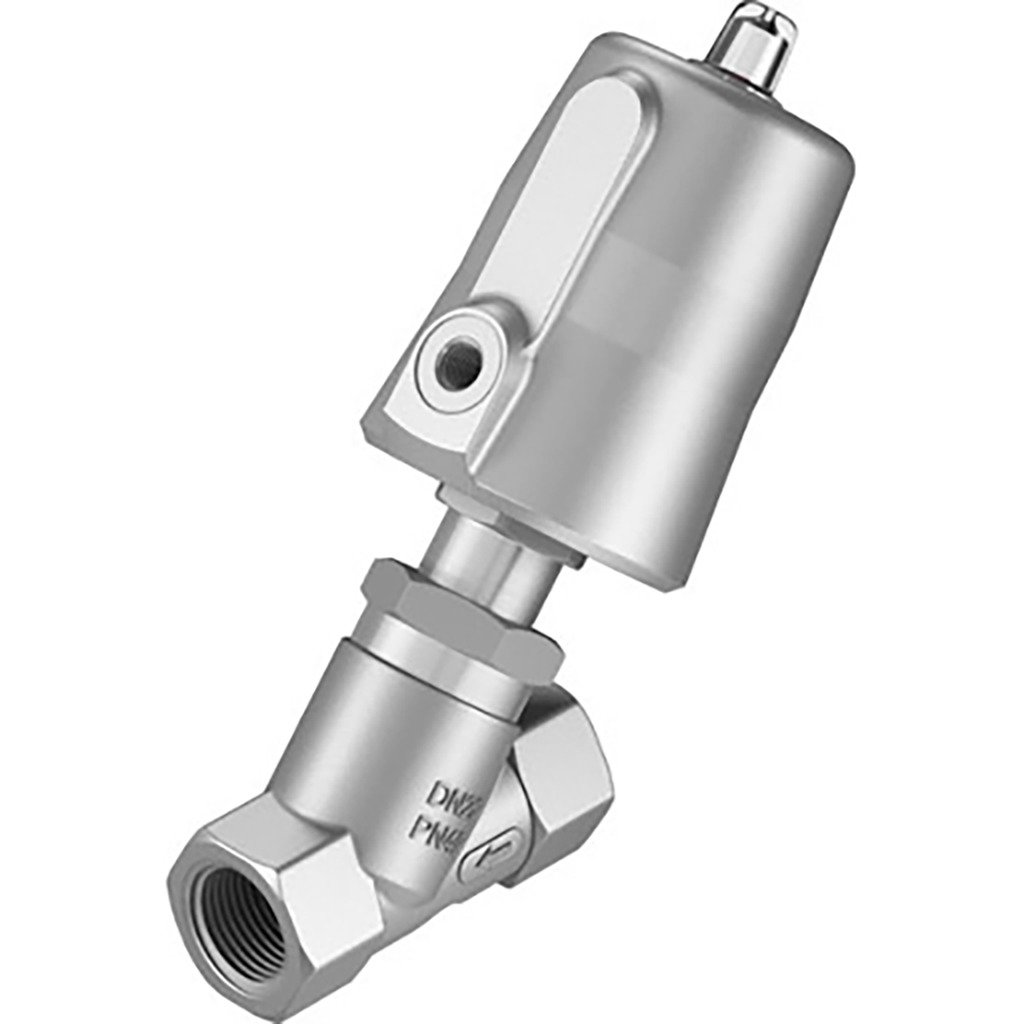

Angle Seat Valve Vzxf-L-M22C-M-A-G1-240-V4B2V-50-V Pneumatically Actuated Angle Seat Valve In Stainless Steel. Over Seat Version, Safety Position Closed, G Thread, Vacuum, Nominal Width 1". Design Structure=Poppet Valve with Piston Actuator, Type of Actuation=Pneumatic, Sealing Principle=Soft, Assembly Position=Any, Mounting Type=Line Installation, Festo
Specifications:
| Brand | Festo |
| Flow LPM | 13200 |
| Function | 2 Way Normally Closed |
| Material | Cast Stainless Steel |
| Micron | 200 |
| Nominal Bore mm | 24 |
| Seal Material | FPM |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 6 to 10 |
| Working Temperature | -10°C to +80°C |
