Description

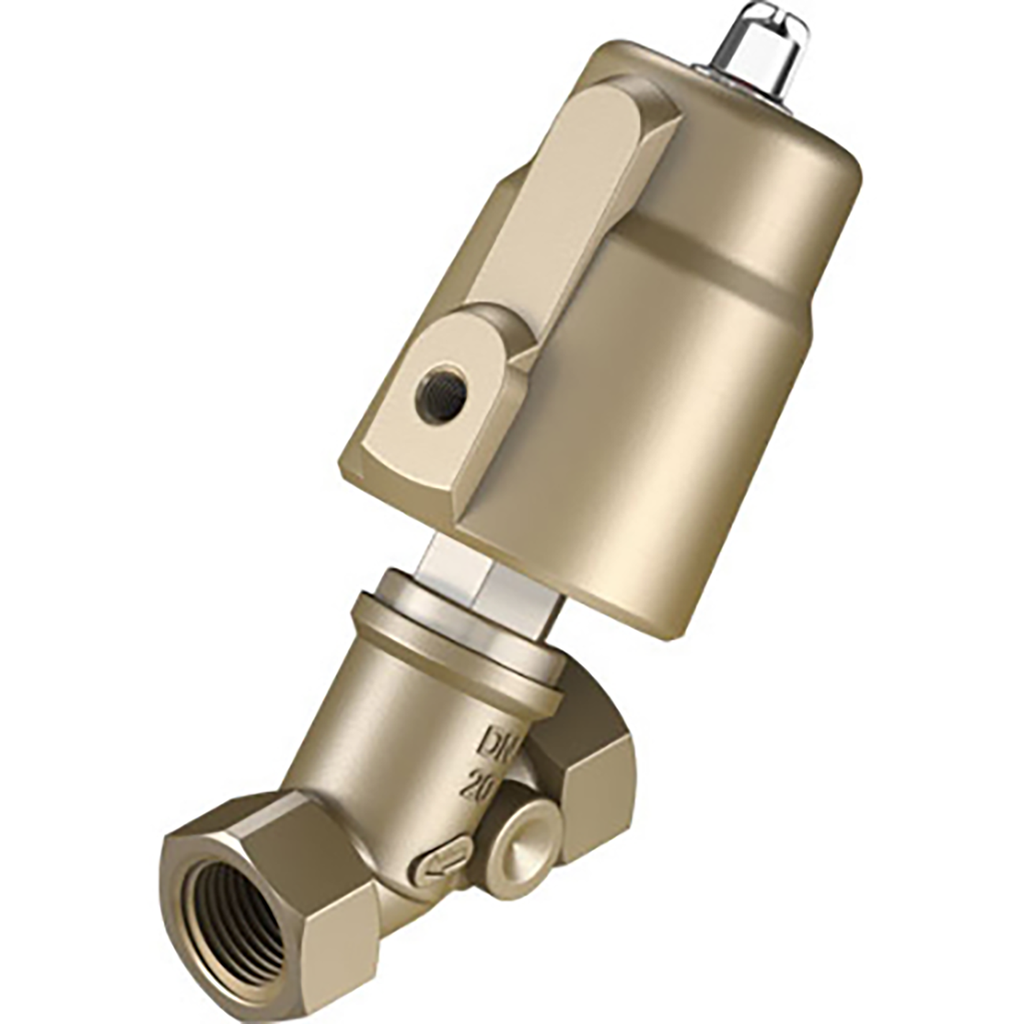

Angle Seat Valve Vzxf-L-M22C-M-A-G2-430-H3B1-50-4 Pneumatically Actuated Angle Seat Valve In Red Brass. Over Seat Version, Safety Position Closed, G Thread, Nominal Width 2". Design Structure=Poppet Valve with Piston Actuator, Type of Actuation=Pneumatic, Sealing Principle=Soft, Assembly Position=Any, Mounting Type=Line Installation, Festo
Specifications:
| Brand | Festo |
| Flow LPM | 30800 |
| Function | 2 Way Normally Closed |
| Material | Red Brass |
| Micron | 200 |
| Nominal Bore mm | 43 |
| Seal Material | PTFE |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 6 to 10 |
| Working Temperature | -10°C to +80°C |
