Description

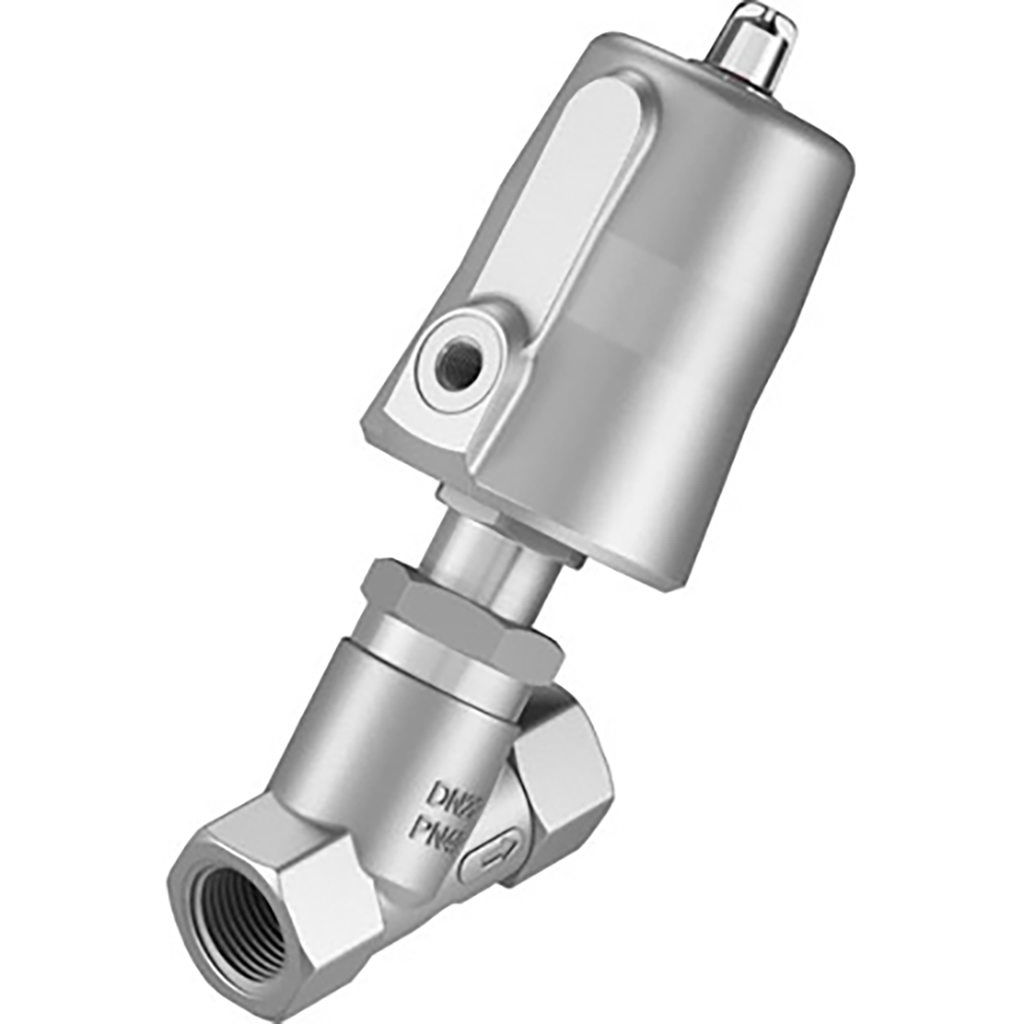

Angle Seat Valve Vzxf-L-M22C-M-B-G34-180-M1-V4B2T-50-20 Pneumatically Actuated Angle Seat Valve In Stainless Steel. Under Seat Version, Safety Position Closed, G Thread, Nominal Width 3/4". Design Structure=Poppet Valve with Piston Actuator, Type of Actuation=Pneumatic, Sealing Principle=Soft, Assembly Position=Any, Mounting Type=Line Installation, Festo
Specifications:
| Brand | Festo |
| Flow LPM | 7150 |
| Function | 2 Way Normally Closed |
| Material | Cast Stainless Steel |
| Micron | 200 |
| Nominal Bore mm | 18 |
| Seal Material | PTFE |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure bar | 6 to 10 |
| Working Temperature | -40°C to +200°C |
