Description

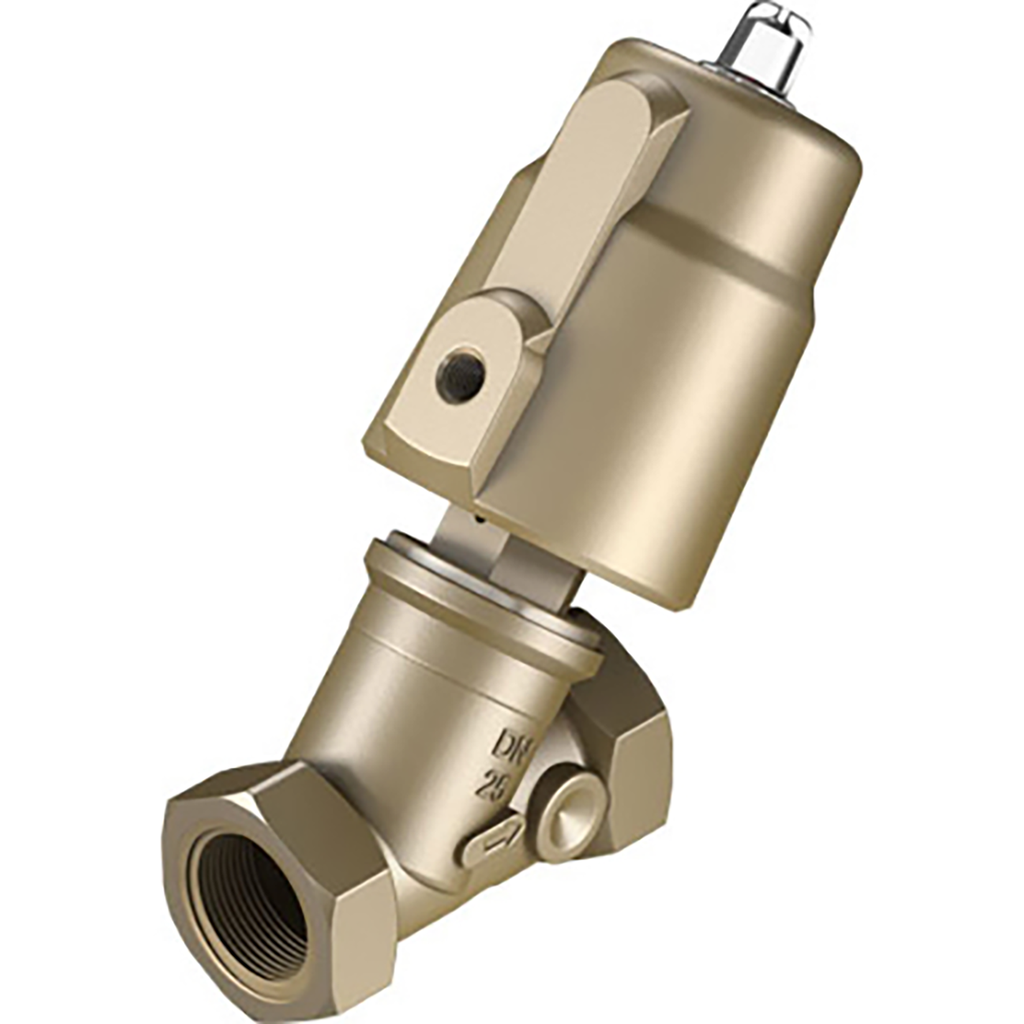

Angle Seat Valve Vzxf-L-M22C-M-B-N114-290-H3B1-50-7 Pneumatically Actuated Angle Seat Valve In Red Brass. Under Seat Version, Safety Position Closed, Npt Thread, Nominal Width 1 1/4". Design Structure=Poppet Valve with Piston Actuator, Type of Actuation=Pneumatic, Sealing Principle=Soft, Assembly Position=Any, Mounting Type=Line Installation, Festo
Specifications:
| Brand | Festo |
| Flow LPM | 6600 |
| Function | 2 Way Normally Closed |
| Material | Red Brass |
| Micron | 200 |
| Nominal Bore mm | 29 |
| Seal Material | PTFE |
| Thread Gender | Female |
| Thread Type | NPT |
| Working Pressure bar | 6 to 10 |
| Working Temperature | -10°C to +80°C |
