Description

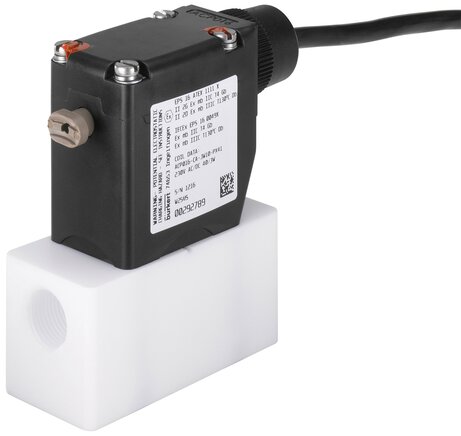

Burkert 0121 3/2-Way Solenoid Valve – 24V DC – 0121-E-04,0-CC-TE-GM83-024/DC- is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.
If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.
Key features
- Genuine Bürkert component for industrial fluid control
- Suitable for automation, process and OEM maintenance
- Designed for dependable operation and long service life
- Specification details listed below
Properties
| CE mark | Yes |
| Seat seal material category | Elastomers |
| Seat seal material | FFKM (perfluoro rubber) |
| Sealing to the outside material | FFKM (perfluoro rubber) |
| Nominal pressure min | 0 bar |
| Nominal pressure max (liquid) | 1 bar |
| Temperature ambient max | 50 °C |
| Temperature medium min | -10 °C |
| Temperature medium max | 90 °C |
| Temperature surface max | 155 °C |
| Main valve nominal diameter 1 (P) (mm) | 4 mm |
| Main valve nominal size 1 (inch) | 5/32 inch |
| Main valve nominal size 3 (R) (mm) | 4 mm |
| Line connection 2 type | Internal thread |
| Line connection 2 Thread type | G |
| Line connection 2 Thread designation | 3/8 |
| Voltage min / nominal voltage | 24 V |
| Voltage max / Nominal voltage | 24 V |
| AC voltage | No |
| DC voltage | Yes |
| Main valve material in contact with medium | PTFE (polytetrafluoroethylene) |
| Valve seat material | PTFE (polytetrafluoroethylene) |
| How it works | E - mixing valve - in rest position pressure port 1 (P1/NC) closed, pressure port 3 (P2/NO) opened to working port 2 (A/OUT) |
| nominal power | 8 W |
| Weight | 490 g / pcs |
| Customs duty number | 84818079 |
| Manufacturer | Burkert |
Supply & support
- UK supply from Roladex Industrial
- Trade pricing available
- Fast UK-wide delivery options
- Technical support for selection and equivalents
