Description

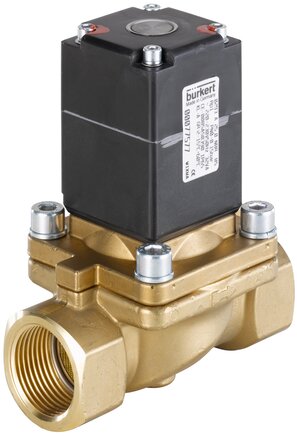

Burkert 0256 2/2-Way Solenoid Valve – 24V AC – 0256-A-04,0-AA-VA-GM82-024/UC- is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.
If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.
Key features
- Genuine Bürkert component for industrial fluid control
- Suitable for automation, process and OEM maintenance
- Designed for dependable operation and long service life
- Specification details listed below
Properties
| CE mark | Yes |
| Seat seal material category | Elastomers |
| Seat seal material | EPDM (Ethylene-propylene-diene rubber) |
| Seal to the outside material | EPDM (ethylene-propylene-diene rubber) |
| Nominal pressure min | 0 bar |
| Nominal pressure max (liquid) | 35 bar |
| Temperature ambient min | -40 °C |
| Temperature ambient max | 55 °C |
| Temperature medium min | -40 °C |
| Temperature medium max | 130 °C |
| Main valve nominal size 1 (P) (mm) | 4 mm |
| Main valve nominal diameter 1 (inch) | 5/32 inch |
| Line connection 2 type | Internal thread |
| Line connection 2 Thread type | G |
| Line connection 2 Thread designation | 1/4 |
| Voltage min / nominal voltage | 24 V |
| Voltage max / Nominal voltage | 24 V |
| AC voltage | Yes |
| DC voltage | Yes |
| Coil size | 40 mm |
| Main valve material in contact with medium | Stainless steel |
| How it works | A - closed in the rest position - pressure port 1 (P/NC) |
| Nominal power | 80 W |
| Weight | 650 g / pcs |
| Customs duty number | 84818079 |
| Manufacturer | Burkert |
Supply & support
- UK supply from Roladex Industrial
- Trade pricing available
- Fast UK-wide delivery options
- Technical support for selection and equivalents
Need help identifying the correct part? Call 01530 229728 or email sales@roladex.co.uk.
