Description

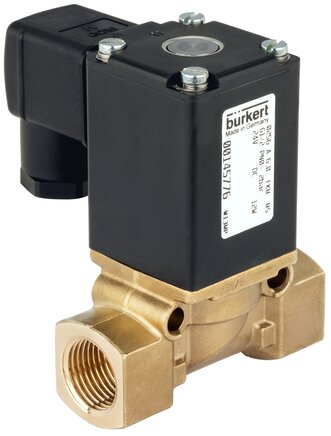

Burkert 0256 2/2-Way Solenoid Valve – 24V DC – 0256-A-06,0-BB-MS-GM84-024/DC- is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.
If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.
Key features
- Genuine Bürkert component for industrial fluid control
- Suitable for automation, process and OEM maintenance
- Designed for dependable operation and long service life
- Specification details listed below
Properties
| CE mark | Yes |
| Seat seal material category | Elastomers |
| Seat seal material | NBR (nitrile rubber) |
| Sealing to the outside material | NBR (nitrile rubber) |
| Nominal pressure min | 0 bar |
| Nominal pressure max (liquid) | 2 bar |
| Temperature ambient max | 55 °C |
| Temperature medium min | -10 °C |
| Temperature medium max | 90 °C |
| Main valve nominal diameter 1 (P) (mm) | 6 mm |
| Main valve nominal diameter 1 (inch) | 1/4 inch |
| Line connection 2 type | Female thread |
| Line connection 2 thread type | G |
| Line connection 2 thread name | 1/2 |
| Voltage min / nominal voltage | 24 V |
| Voltage max / nominal voltage | 24 V |
| AC voltage | No |
| DC voltage | Yes |
| Coil size | 40 mm |
| Main valve material in contact with the medium | Brass |
| How it works | A - closed in rest position - pressure port 1 (P/NC) |
| Nominal power | 12 W |
| Weight | 700 g / pcs |
| Customs duty number | 84818079 |
| Manufacturer | Burkert |
