Description

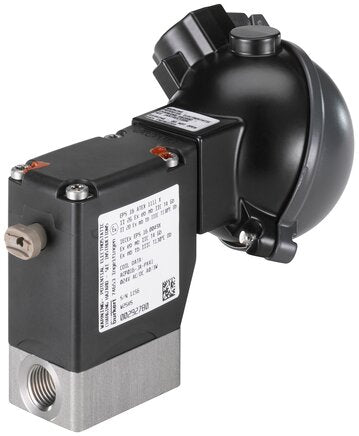

Burkert 0330 2/2-Way Solenoid Valve – 24V AC – 0330-A-03,0-FF-VA-NM82-024/UC- is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.
If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.
Key features
- Genuine Bürkert component for industrial fluid control
- Suitable for automation, process and OEM maintenance
- Designed for dependable operation and long service life
- Specification details listed below
Properties
| CE mark | Yes |
| Seat seal material category | Elastomers |
| Seat seal material | FKM (fluoro rubber) |
| Sealing to the outside material | FKM (fluorinated rubber) |
| Nominal pressure min | 0 bar |
| Nominal pressure max (liquid) | 10 bar |
| Temperature ambient max | 55 °C |
| Temperature medium min | 0 °C |
| Temperature medium max | 90 °C |
| Main valve nominal diameter 1 (P) (mm) | 3 mm |
| Main valve Nominal size 1 (inch) | 1/8 inch |
| Line connection 2 type | Female thread |
| Line connection 2 thread type | NPT |
| Line connection 2 thread name | 1/4 |
| Voltage min / nominal voltage | 24 V |
| Voltage max / nominal voltage | 24 V |
| AC voltage | Yes |
| DC voltage | Yes |
| Voltage Frequency | 50/60 Hz |
| Main valve material in contact with the medium | Stainless steel |
| Valve seat material | Stainless steel |
| How it works | A - in Normal position closed - pressure port 1 (P/NC) |
| Rated power | 40 W |
| Weight | 600 g / pcs |
| Customs duty number | 84818079 |
| Manufacturer | Burkert |
