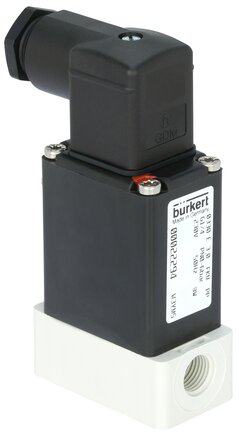

Burkert | 0330-A-04.0-AA-PP-GM82-230/50 | 0330 2/2-Way Solenoid Valve – Pp (Polypropylene) – G1/4" – 230V AC

burkert 0330 2/2-way solenoid valve – pp (polypropylene) – g1/4" – 230v ac – 0330-a-04,0-aa-pp-gm82-230/50-
Product details
Brand
Burkert
MPN
0330-A-04.0-AA-PP-GM82-230/50
Category
Pneumatic Solenoid Valves
Roladex Industrial
Genuine branded products View more Burkert products.
UK & export supply Industrial parts supplied across the UK and overseas.
Sourcing & quote support Talk directly to our industrial sales team.
Price ex VAT £235.30
Price inc VAT £282.36
Price:
£235.30
ex VAT
£282.36
inc VAT
Buy Burkert 0330-A-04.0-AA-PP-GM82-230/50 from Roladex Industrial

Order online today, or request a quote for quantity pricing, confirmed lead time and suitable alternatives.

In stock
Expert support Technical support & sourcing
Customer assurance Delivery, returns & supply policies
Trade accounts Apply for a trade account
UK & export supply Delivery & supply policy

Product Description

Manufacturer: Burkert

MPN: 0330-A-04.0-AA-PP-GM82-230/50

Burkert 0330 2/2-Way Solenoid Valve – 230V AC – 0330-A-04,0-AA-PP-GM82-230/50- is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.

If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.

Key features

  • Genuine Bürkert component for industrial fluid control
  • Suitable for automation, process and OEM maintenance
  • Designed for dependable operation and long service life
  • Specification details listed below

Properties

CE mark Yes
Seat seal material category Elastomers
Seat seal material EPDM (Ethylene-propylene-diene rubber)
Seal to the outside material EPDM (ethylene-propylene-diene rubber)
Nominal pressure min 0 bar
Nominal pressure max (liquid) 5 bar
Temperature ambient max 55 °C
Temperature medium min -30 °C
Temperature medium max 80 °C
Temperature surface max 150 °C
Main valve nominal size 1 (P) (mm) 4 mm
Main valve nominal size 1 (inch) 5/32 inch
Line connection 2 type Internal thread
Line connection 2 thread type G
Line connection 2 thread designation 1/4
Voltage min / nominal voltage 230 V
Voltage max / nominal voltage 230 V
AC voltage Yes
DC voltage No
Voltage frequency 50 Hz
Main valve material in contact with medium PP (Polypropylene)
Valve seat material PP (polypropylene)
How it works A - closed in rest position - pressure port 1 (P/NC)
Nominal power 8 W
Weight 330 g / pcs
Customs duty number 84818079
Manufacturer Burkert
