Description

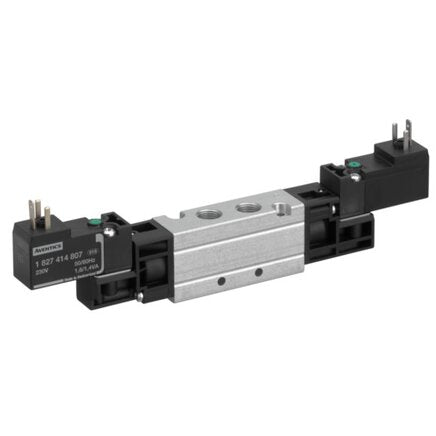

Genuine Aventics pneumatic valve.
| Manufacturer | Aventics |
| MPN | 820037102 |
| Product Type | Pneumatic Valve |
| Series | Wv02 Series |
| Valve Configuration | 3/2 |
| Voltage | 24DC |
| Electrical interface | ISO 15217, Form C |
| Manual override | latching |
| Output connection | G 1/8" |
| Nominal flow Qn | 600 l/min |
| Ambient temperature max. | 50 °C |
| Ambient temperature min. | 0 °C |
| Connection input | G 1/8" |
| Operating pressure max. | 10 bar |
| Operating pressure min. | 2.2 bar |
| Operating voltage V DC | 24 V |
| SAP short text | WV02-?3/2CC-?024DC |
