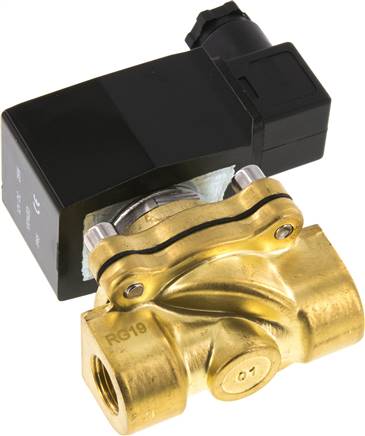

ZS 38 V 230V (EMC) 2/2-way MS solenoid valve G 3/8", 0-6/10 (DC/AC) bar, NC

Genuine EMC ZS 38 V 230V – ZS 38 V 230V (EMC) 2/2-way MS solenoid valve G 3/8", 0-6/10 (DC/AC) bar, NC. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: ZS 38 V 230V
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC ZS 38 V 230V – ZS 38 V 230V (EMC) 2/2-way MS solenoid valve G 3/8", 0-6/10 (DC/AC) bar, NC. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: ZS 38 V 230V
• Brand: EMC
• Product: ZS 38 V 230V (EMC) 2/2-way MS solenoid valve G 3/8", 0-6/10 (DC/AC) bar, NC

Trusted by engineers across the UK, this ZS 38 V 230V (EMC) 2/2-way MS solenoid valve G 3/8", 0-6/10 (DC/AC) bar, NC is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Bodies: brass, internal parts: brass / stainless steel, seal: NBR

Temperature range:
-10°C to max. +80°C, ambience: max. +65 °C

Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request

Installation position:
With upright magnets

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65 (plug size 3)

Optional:
FKM seal (-10°C to max. +130°C) -V, EPDM seal for air and warm water (-10°C to max. +120°C) -EP

Information:
These valves are always supplied with a solenoid coil and a connector plug. Version 2/2-way solenoid valve Control voltage 230 V AC function normally closed (NC) Thread G 3/8" Seals FKM Operating pressure [bar] 0 - 10 DN [mm] 16 L [mm] 69 Kv value* [l/min] 68 Power consumption (AC) [VA] 24 Structural shape solenoid coil Q Spare solenoid coil MAG Q 230V Spare membrane (sealing kit**) NBR ZS 381234 MEM N Spare membrane (sealing kit**) FKM ZS 381234 MEM V Spare membrane (sealing kit**) EPDM ZS 381234 MEM EP Media temperature [°C] -10 to +130 Weight 900 g / pcs GTIN 4050571888589 Customs duty number 84812090 RoHS compliant Yes Manufacturer EMC
