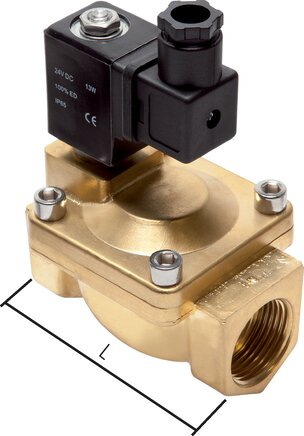

SLP 112 24V= (EMC) 2/2-way solenoid valve G 1-1/2", normally closed (NC),NBR Eco

Genuine EMC SLP 112 24V= – SLP 112 24V= (EMC) 2/2-way solenoid valve G 1-1/2", normally closed (NC),NBR Eco. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SLP 112 24V=
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SLP 112 24V= – SLP 112 24V= (EMC) 2/2-way solenoid valve G 1-1/2", normally closed (NC),NBR Eco. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SLP 112 24V=
• Brand: EMC
• Product: SLP 112 24V= (EMC) 2/2-way solenoid valve G 1-1/2", normally closed (NC),NBR Eco

Trusted by engineers across the UK, this SLP 112 24V= (EMC) 2/2-way solenoid valve G 1-1/2", normally closed (NC),NBR Eco is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body: brass, internal parts: brass / stainless steel, seal: NBR (types G 1/8" & G 1/4": FKM)

Temperature range:
-10°C up to max. water, neutral low-viscosity media, other media on request

Installation position:
With upright magnets

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Optional:
FKM seal (-10°C to max. +130°C) -V, EPDM seal for air and warm water (-10°C to max. +120°C) -EP

Information:
These valves are always supplied with a solenoid coil and a connector plug.

Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably). Version 2/2-way solenoid valve Control voltage 24 V DC function normally closed (NC) Thread G 1-1/2" Seals NBR Operating pressure [bar] 0.5 - 16 DN [mm] 40 L [mm] 131 Kv value* [l/min] 427 Power consumption (DC) [W] 13 Structural shape solenoid coil P Spare solenoid coil MAG P 24V= Spare membrane NBR SLP 114112 MEM N Spare membrane FKM SLP 114112 MEM V Spare membrane EPDM SLP 114112 MEM EP Media temperature [°C] -10 to +80 Weight 2.8 kg / pcs GTIN 4050571631161 Customs duty number 84812090 RoHS compliant Yes Manufacturer EMC
